| P/N | Frequency Range | Coupling | VSWR Max | Coupling Flatness | IL Max | Directivity Min | Amplitude Balance Max | Phase Balance Max | Power Input Max | Isolation Min | Connector | 加入询价单 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC00506-10 | 0.5-6 GHz | 10±0.7 dB | 1.25 | ±0.7 dB | 18 dB | 50 W | SMA | 加入询价单 | ||||
| DC00506-30 | 0.5-6 GHz | 30±1.0 dB | 1.3 | ±1.0 dB | 16 dB | 50 W | SMA | 加入询价单 | ||||
| DC00518-10 | 0.5-18 GHz | 10±0.6 dB | 1.4 | ±0.8 dB | 15 dB | 50 W | SMA | 加入询价单 | ||||
| DC00518-20 | 0.5-18 GHz | 20±1.2 dB | 1.5 | ±1.0 dB | 10 dB | 50 W | SMA | 加入询价单 | ||||
| DC00518-30 | 0.5-18 GHz | 30±1.0 dB | 1.4 | ±1.0 dB | 10 dB | 30 W | SMA | 加入询价单 | ||||
| DC0118N-10 | 1-18 GHz | 10±1.0 dB | 1.6 | ±1.0 dB | 12 dB | 50 W | N | 加入询价单 | ||||
| DC0118N-20 | 1-18 GHz | 20±1.0 dB | 1.5 | ±1.0 dB | 12 dB | 50 W | N | 加入询价单 | ||||
| DC0118N-30 | 1-18 GHz | 30±1.0 dB | 1.6 | ±1.0 dB | 10 dB | 50 W | N | 加入询价单 | ||||
| DC0218-06 | 2-18 GHz | 6±0.7 dB | 1.5 | ±0.7 dB | 15 dB | 20 W | SMA | 加入询价单 | ||||
| DC0218-10 | 2-18 GHz | 10±1.0 dB | 1.5 | ±1.0 dB | 15 dB | 20 W | SMA | 加入询价单 | ||||
| DC0218-20 | 2-18 GHz | 20±1.0 dB | 1.5 | ±1.0 dB | 12 dB | 20 W | SMA | 加入询价单 | ||||

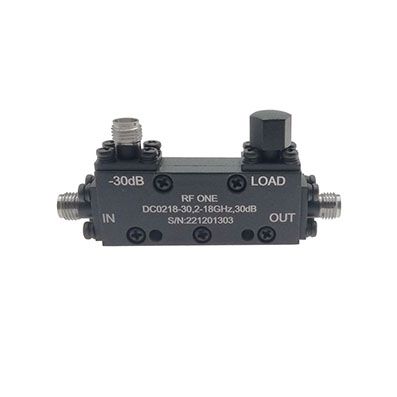

| DC0218-30 | 2-18 GHz | 30±1.0 dB | 1.5 | ±1.0 dB | 12 dB | 20 W | SMA | 加入询价单 | ||||
| DC0140-10 | 1-40 GHz | 10±1.0 dB | 1.7 | ±1.2 dB | 10 dB | 20 W | 2.92mm | 加入询价单 | ||||
| DC0140-16 | 1-40 GHz | 16±1.0 dB | 1.7 | ±1.2 dB | 10 dB | 20 W | 2.92mm | 加入询价单 | ||||
| DC0140-20 | 1-40 GHz | 20±1.0 dB | 1.7 | ±1.2 dB | 10 dB | 20 W | 2.92mm | 加入询价单 | ||||
| DC0140-30 | 1-40 GHz | 30±1.0 dB | 1.7 | ±1.5 dB | 10 dB | 20 W | 2.92mm | 加入询价单 | ||||
| DC0240-10 | 2-40 GHz | 10±1.0 dB | 1.6 | ±1.0 dB | 12 dB | 20 W | 2.92mm | 加入询价单 | ||||
| DC0240-20 | 2-40 GHz | 20±1.0 dB | 1.6 | ±1.0 dB | 12 dB | 20 W | 2.92mm | 加入询价单 | ||||
| DC0240-30 | 2-40 GHz | 30±1.0 dB | 1.6 | ±1.5 dB | 10 dB | 20 W | 2.92mm | 加入询价单 | ||||
| DC1840-10 | 18-40 GHz | 10±0.7 dB | 1.6 | ±0.7 dB | 12 dB | 20 W | 2.92mm | 加入询价单 | ||||
| DC1840-20 | 18-40 GHz | 20±1.0 dB | 1.6 | ±1.0 dB | 12 dB | 20 W | 2.92mm | 加入询价单 | ||||
| DC1840-30 | 18-40 GHz | 30±1.0 dB | 1.6 | ±1.0 dB | 10 dB | 20 W | 2.92mm | 加入询价单 | ||||
| DC0270-10 | 2-70 GHz | 10±1.0 dB | 2.2 | ±1.5 dB | 6 dB | 5 W | 1.85mm | 加入询价单 | ||||
| DC0270-20 | 2-70 GHz | 20±1.0 dB | 1.8 | ±1.5 dB | 8 dB | 5 W | 1.85mm | 加入询价单 | ||||
| HC00501-S | 0.5-1 GHz | 1.2 | 0.3 dB | ±0.5 dB | ±2° | 22 dB | SMA | 加入询价单 | ||||
| HC00506-S | 0.5-6 GHz | 1.3 | 1.3 dB | ±0.7 dB | ±5° | 18 dB | SMA | 加入询价单 | ||||
| HC013026-S | 1.3-2.6 GHz | 1.2 | 0.3 dB | ±0.5 dB | ±2° | 22 dB | SMA | 加入询价单 | ||||
| HC0204-S | 2-4 GHz | 1.25 | 0.35 dB | ±0.5 dB | ±2° | 25 dB | SMA | 加入询价单 | ||||
| HC0218-S | 2-18 GHz | 1.5 | 1.2 dB | ±0.7 dB | ±7° | 18 dB | SMA | 加入询价单 | ||||

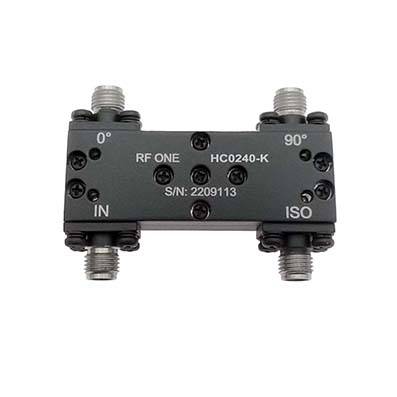

| HC0240-K | 2-40 GHz | 1.6 | 2.5 dB | ±1.2 dB | ±12° | 12 dB | 2.92mm | 加入询价单 |
