| P/N | Average Power | Frequency Max | VSWR Max | Attenuations | Shape | Direction | Dimensions (mm) | 加入询价单 |
|---|---|---|---|---|---|---|---|---|
| RFHB04XXDC10 | 10 W | 4 GHz | 1.2 | 1-50 dB | Round | Bidirectional | 49.5(L)*38(φ) | 加入询价单 |

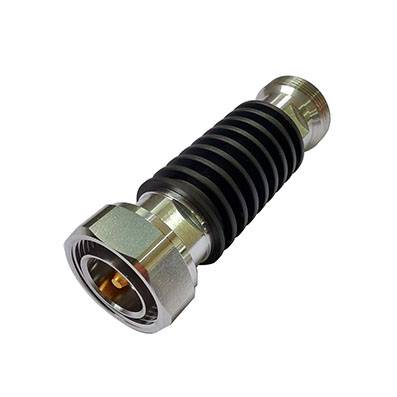

| RFHB06XXDC10 | 10 W | 6 GHz | 1.25 | 1-50 dB | Round | Bidirectional | 49.5(L)*38(φ) | 加入询价单 |
| RFHB04XXDC25 | 25 W | 4 GHz | 1.2 | 1-40 dB | Round | Bidirectional | 54(L)*44(φ) | 加入询价单 |

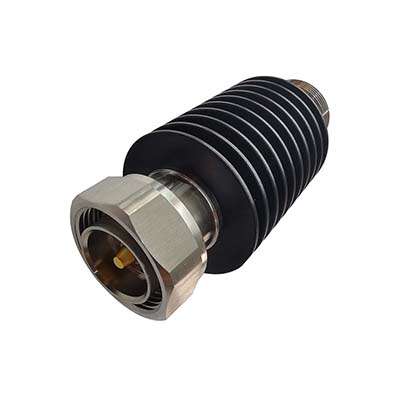

| RFHB06XXDC25 | 25 W | 6 GHz | 1.25 | 1-40 dB | Round | Bidirectional | 54(L)*44(φ) | 加入询价单 |

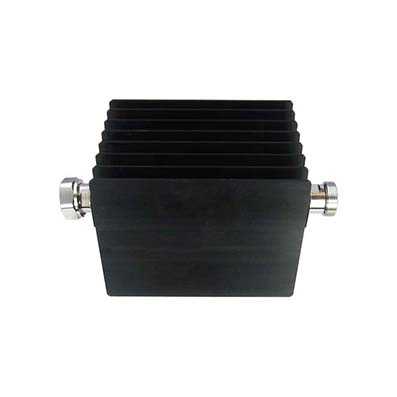

| RFHB04XXDC100-D | 100 W | 4 GHz | 1.2 | 3-40 dB | Rectangular | Bidirectional | 152*110*120 | 加入询价单 |
| RFHB06XXDC100-D | 100 W | 6 GHz | 1.25 | 6-40 dB | Rectangular | Bidirectional | 152*110*120 | 加入询价单 |

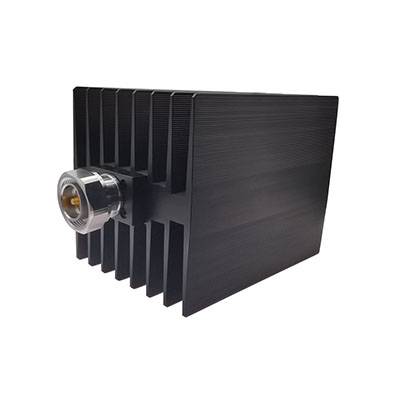

| RFH04XXDD100-D | 100 W | 4 GHz | 1.2 | 6-30 dB | Rectangular | Unidirectional | 101*110*120 | 加入询价单 |

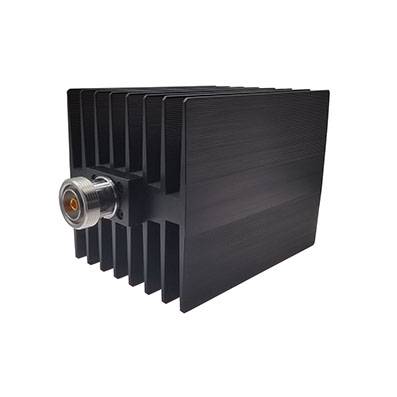

| RFH06XXDD100-D | 100 W | 6 GHz | 1.25 | 6-30 dB | Rectangular | Unidirectional | 101*110*120 | 加入询价单 |
| RFH06XXDD1000 | 1000 W | 6 GHz | 1.4 | 30-60 dB | Rectangular | Unidirectional | 486*220*508 | 加入询价单 |

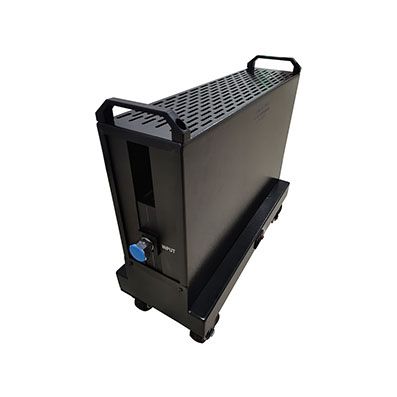

| RFH03XXDA1500 | 1500 W | 3 GHz | 1.25 | 20-50 dB | Rectangular | Unidirectional | 564*220*508 | 加入询价单 |

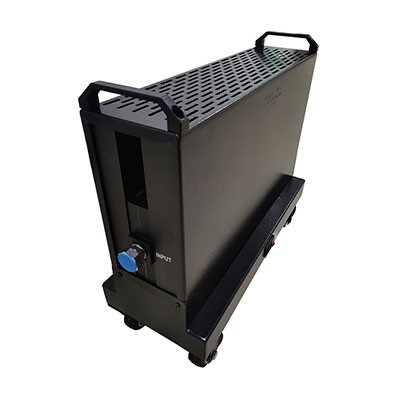

| RFH02XXDD2000 | 2000 W | 2 GHz | 1.25 | 40-60 dB | Rectangular | Unidirectional | 641*220*508 | 加入询价单 |
| RFH04XXDD2000 | 2000 W | 4 GHz | 1.35 | 40-60 dB | Rectangular | Unidirectional | 641*220*508 | 加入询价单 |
| RFH06XXDD2000 | 2000 W | 6 GHz | 1.45 | 40-60 dB | Rectangular | Unidirectional | 641*220*508 | 加入询价单 |
