| P/N | Connection Type | Freq Range | Connector 1 | Connector 2 | Body Style | VSWR Max | 加入询价单 |
|---|---|---|---|---|---|---|---|
|
A6704B |
Between Series | DC-100 GHz | 1.0mm Male | SMPS Female | Straight | 1.4 | 加入询价单 |
|
A6705B |
Between Series | DC-67 GHz | 1.0mm Male | 1.85mm Female | Straight | 1.25 | 加入询价单 |
|
A6706B |
Between Series | DC-67 GHz | 1.0mm Female | 1.85mm Male | Straight | 1.25 | 加入询价单 |
|
A6707B |
Between Series | DC-67 GHz | 1.0mm Male | 1.85mm Male | Straight | 1.25 | 加入询价单 |

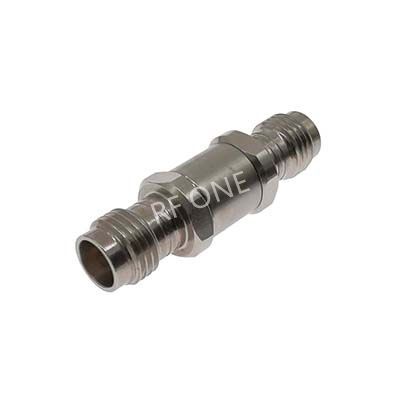

| A6701B | In Series | DC-67 GHz | 1.85mm Female | 1.85mm Female | Straight | 1.3 | 加入询价单 |

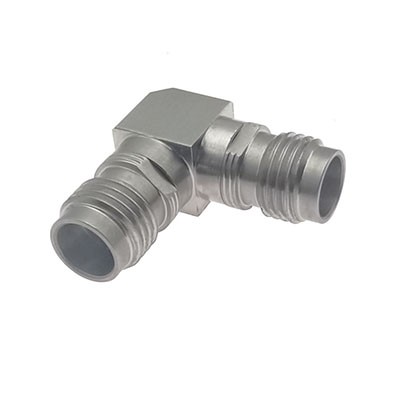

| A6701B-R1 | In Series | DC-67 GHz | 1.85mm Female | 1.85mm Female | Right Angle | 1.3 | 加入询价单 |

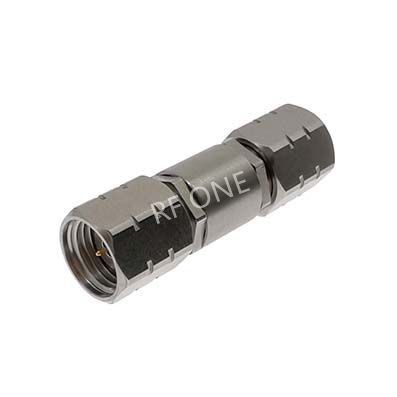

| A6702B | In Series | DC-67 GHz | 1.85mm Male | 1.85mm Male | Straight | 1.3 | 加入询价单 |

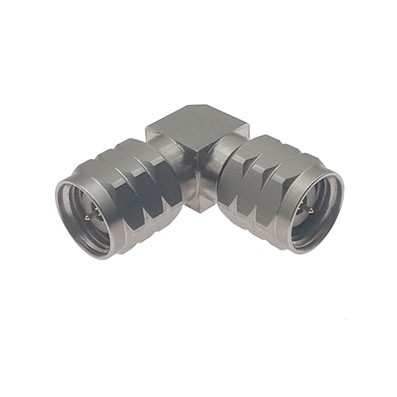

| A6702B-R1 | In Series | DC-67 GHz | 1.85mm Male | 1.85mm Male | Right Angle | 1.3 | 加入询价单 |

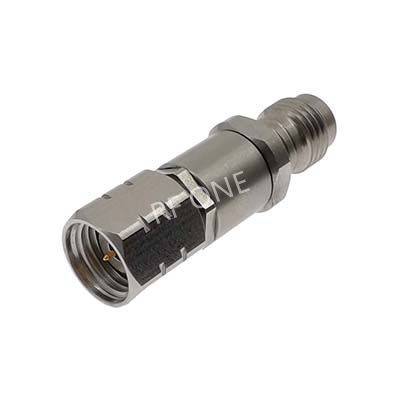

| A6703B | In Series | DC-67 GHz | 1.85mm Male | 1.85mm Female | Straight | 1.3 | 加入询价单 |

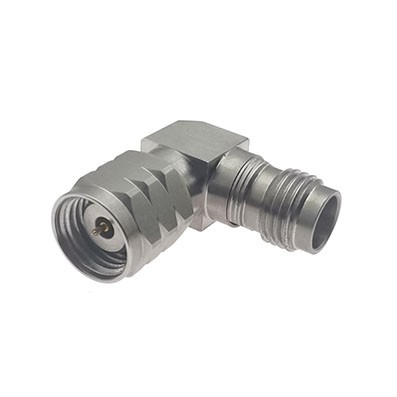

| A6703B-R1 | In Series | DC-67 GHz | 1.85mm Male | 1.85mm Female | Right Angle | 1.3 | 加入询价单 |

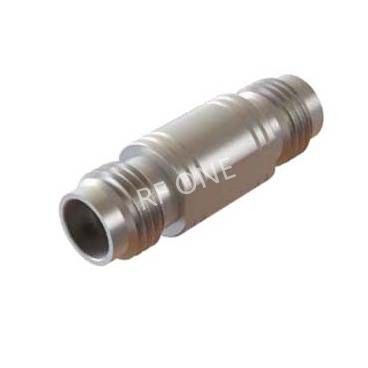

| A6501P | In Series | DC-67 GHz | 1.85mm Female | 1.85mm Female | Straight | 1.25 | 加入询价单 |

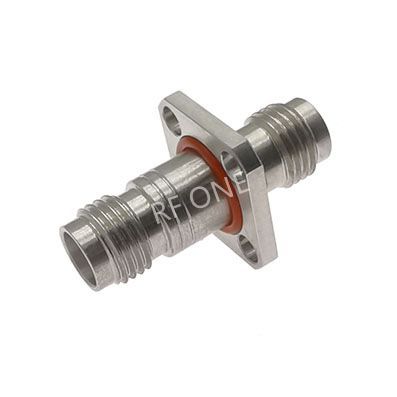

| A6501P-F | In Series | DC-67 GHz | 1.85mm Female | 1.85mm Female | 4 Hole Flange | 1.25 | 加入询价单 |

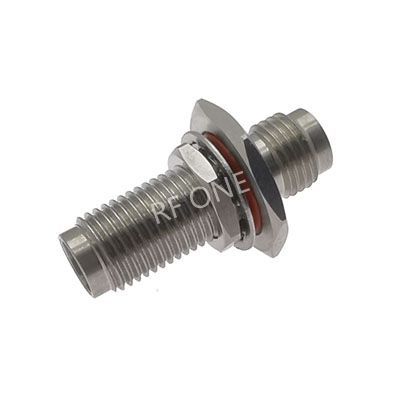

| A6501P-Y | In Series | DC-67 GHz | 1.85mm Female | 1.85mm Female | Bulkhead | 1.25 | 加入询价单 |

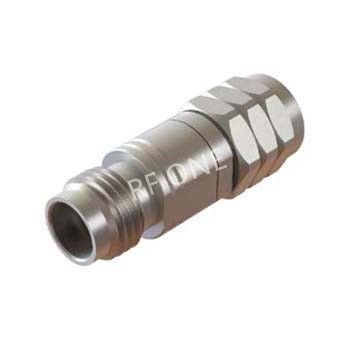

| A6502P | In Series | DC-67 GHz | 1.85mm Male | 1.85mm Female | Straight | 1.25 | 加入询价单 |

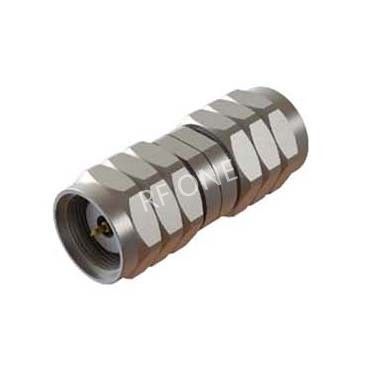

| A6503P | In Series | DC-67 GHz | 1.85mm Male | 1.85mm Male | Straight | 1.25 | 加入询价单 |

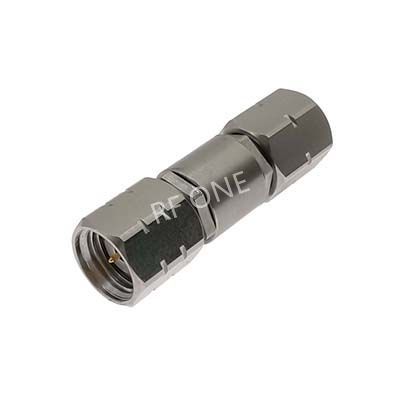

| A5004B | Between Series | DC-50 GHz | 1.85mm Male | 2.4mm Male | Straight | 1.2 | 加入询价单 |

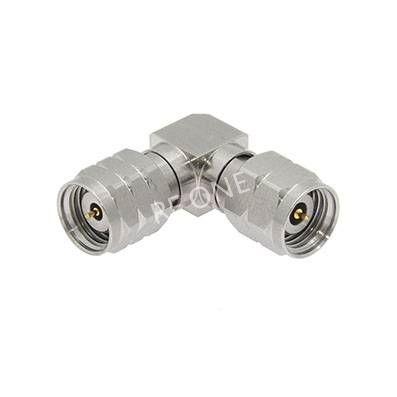

| A5004B-RA | Between Series | DC-50 GHz | 1.85mm Male | 2.4mm Male | Right Angle | 1.3 | 加入询价单 |

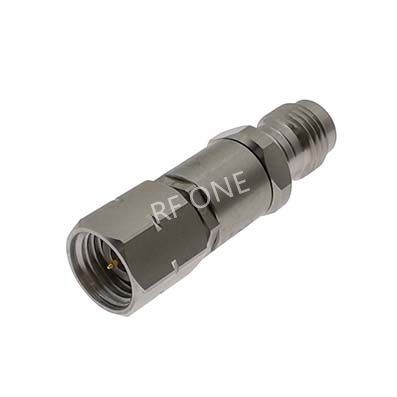

| A5005B | Between Series | DC-50 GHz | 1.85mm Female | 2.4mm Male | Straight | 1.2 | 加入询价单 |

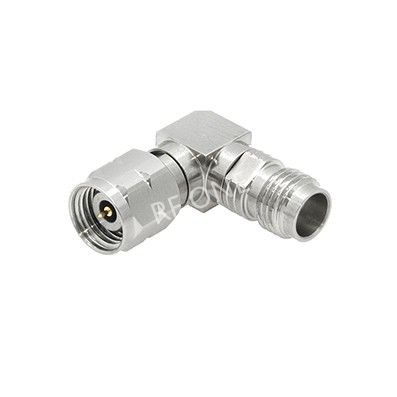

| A5005B-RA | Between Series | DC-50 GHz | 1.85mm Female | 2.4mm Male | Right Angle | 1.3 | 加入询价单 |

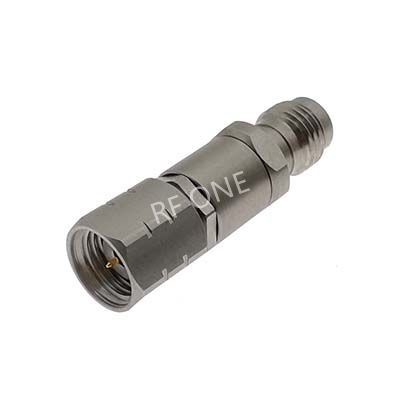

| A5006B | Between Series | DC-50 GHz | 1.85mm Male | 2.4mm Female | Straight | 1.2 | 加入询价单 |
| A5006B-RA | Between Series | DC-50 GHz | 1.85mm Male | 2.4mm Female | Right Angle | 1.3 | 加入询价单 |
| A5007B | Between Series | DC-50 GHz | 1.85mm Female | 2.4mm Female | Straight | 1.2 | 加入询价单 |
| A5007B-RA | Between Series | DC-50 GHz | 1.85mm Female | 2.4mm Female | Right Angle | 1.3 | 加入询价单 |
| A4008B | Between Series | DC-40 GHz | 1.85mm Male | 2.92mm Male | Straight | 1.15 | 加入询价单 |
| A4008B-RA | Between Series | DC-40 GHz | 1.85mm Male | 2.92mm Male | Right Angle | 1.25 | 加入询价单 |
| A4009B | Between Series | DC-40 GHz | 1.85mm Female | 2.92mm Male | Straight | 1.15 | 加入询价单 |
| A4009B-RA | Between Series | DC-40 GHz | 1.85mm Female | 2.92mm Male | Right Angle | 1.25 | 加入询价单 |
| A4010B | Between Series | DC-40 GHz | 1.85mm Female | 2.92mm Female | Straight | 1.15 | 加入询价单 |
| A4010B-RA | Between Series | DC-40 GHz | 1.85mm Female | 2.92mm Female | Right Angle | 1.25 | 加入询价单 |
| A4011B | Between Series | DC-40 GHz | 1.85mm Male | 2.92mm Female | Straight | 1.15 | 加入询价单 |
| A4011B-RA | Between Series | DC-40 GHz | 1.85mm Male | 2.92mm Female | Right Angle | 1.25 | 加入询价单 |
| A2716B | Between Series | DC-34 GHz | 1.85mm Male | 3.5mm Male | Straight | 1.2 | 加入询价单 |
| A2717B | Between Series | DC-34 GHz | 1.85mm Female | 3.5mm Male | Straight | 1.2 | 加入询价单 |
| A2718B | Between Series | DC-34 GHz | 1.85mm Male | 3.5mm Female | Straight | 1.2 | 加入询价单 |
| A2719B | Between Series | DC-34 GHz | 1.85mm Female | 3.5mm Female | Straight | 1.2 | 加入询价单 |
| A3312P | Between Series | DC-33 GHz | 1.85mm Female | 3.5mm Female | Straight | 1.15 | 加入询价单 |
| A3313P | Between Series | DC-33 GHz | 1.85mm Female | 3.5mm Male | Straight | 1.15 | 加入询价单 |
| A3314P | Between Series | DC-33 GHz | 1.85mm Male | 3.5mm Female | Straight | 1.15 | 加入询价单 |
| A3315P | Between Series | DC-33 GHz | 1.85mm Male | 3.5mm Male | Straight | 1.15 | 加入询价单 |
| A1855B | Between Series | DC-18 GHz | 1.85mm Male | SMA Male | Straight | 1.15 | 加入询价单 |
| A1856B | Between Series | DC-18 GHz | 1.85mm Female | SMA Male | Straight | 1.15 | 加入询价单 |
| A1857B | Between Series | DC-18 GHz | 1.85mm Male | SMA Female | Straight | 1.15 | 加入询价单 |
| A1858B | Between Series | DC-18 GHz | 1.85mm Female | SMA Female | Straight | 1.15 | 加入询价单 |
| A6708B | Between Series | DC-67 GHz | Mini SMP Female | 1.85mm Female | Straight | 1.45 | 加入询价单 |
| A6709B | Between Series | DC-67 GHz | Mini SMP Male | 1.85mm Female | Straight | 1.45 | 加入询价单 |
| A6710B | Between Series | DC-67 GHz | Mini SMP Female | 1.85mm Male | Straight | 1.45 | 加入询价单 |
| A6711B | Between Series | DC-67 GHz | Mini SMP Male | 1.85mm Male | Straight | 1.45 | 加入询价单 |
| AHS-VFVF-1 | In Series | DC-67 GHz | 1.85mm Female | 1.85mm Female | Bulkhead Hermetically | 1.5 | 加入询价单 |
