| P/N | Connector | Gender | Frequency Max | Body Width | Pin Diameter | Max PCB Thickness | VSWR Max | 加入询价单 |
|---|---|---|---|---|---|---|---|---|
|

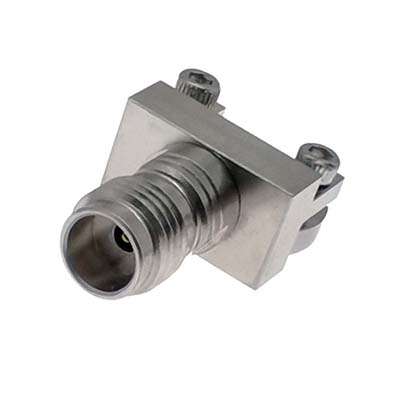

EL185F-1 |
1.85mm | Female | 67 GHz | 0.5 inch | 0.007 inch | 2.5 mm | 1.35 | 加入询价单 |

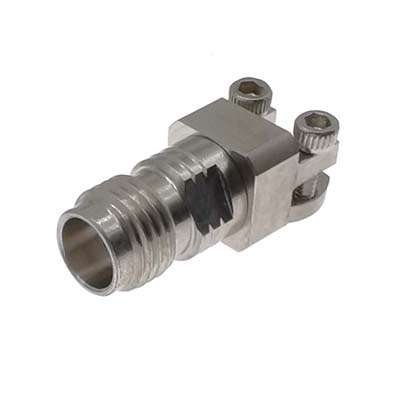

| EL185F-2 | 1.85mm | Female | 67 GHz | 0.35 inch | 0.007 inch | 3.0 mm | 1.35 | 加入询价单 |
|
EL24F-1 |
2.4mm | Female | 50 GHz | 0.5 inch | 0.01 inch | 2.5 mm | 1.3 | 加入询价单 |

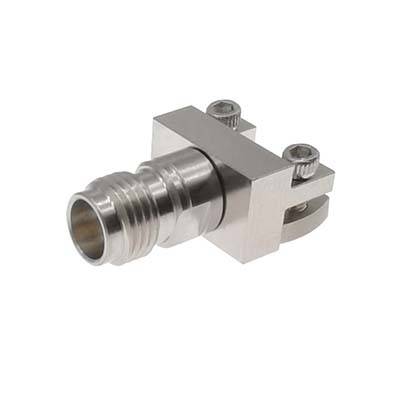

| EL24F-2 | 2.4mm | Female | 50 GHz | 0.5 inch | 0.007 inch | 2.5 mm | 1.3 | 加入询价单 |

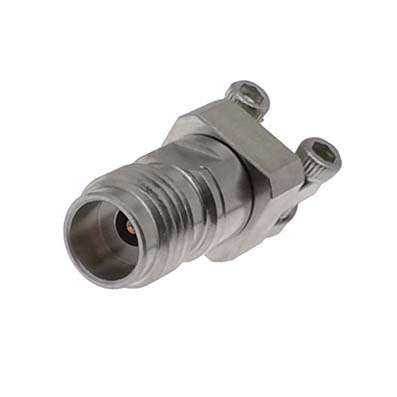

| EL24F-3 | 2.4mm | Female | 50 GHz | 0.35 inch | 0.007 inch | 3.0 mm | 1.3 | 加入询价单 |
|

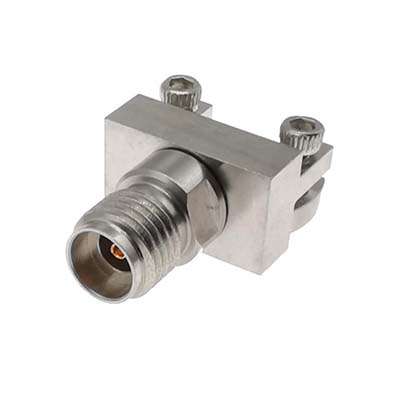

EL292F-1 |
2.92mm | Female | 40 GHz | 0.5 inch | 0.01 inch | 2.5 mm | 1.25 | 加入询价单 |

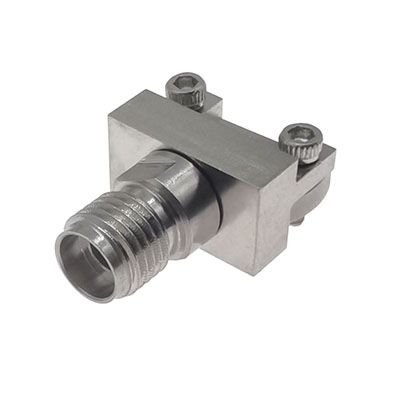

| EL292F-2 | 2.92mm | Female | 40 GHz | 0.5 inch | 0.007 inch | 2.5 mm | 1.25 | 加入询价单 |

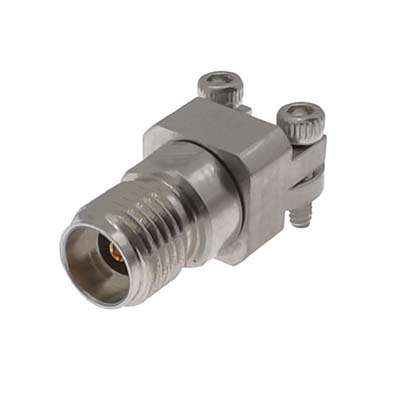

| EL292F-3 | 2.92mm | Female | 40 GHz | 0.35 inch | 0.007 inch | 3.0 mm | 1.25 | 加入询价单 |

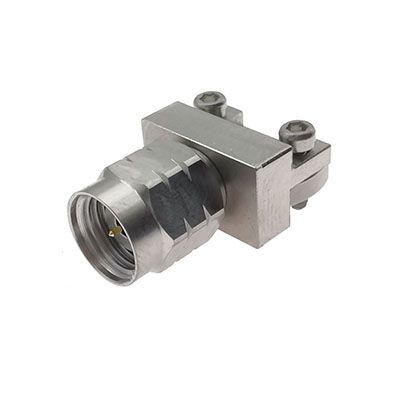

| EL185M-1 | 1.85mm | Male | 67 GHz | 0.5 inch | 0.007 inch | 2.5 mm | 1.35 | 加入询价单 |
| EL185M-2 | 1.85mm | Male | 67 GHz | 0.35 inch | 0.007 inch | 3.0 mm | 1.35 | 加入询价单 |

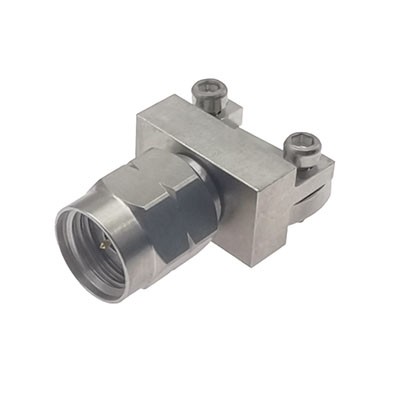

| EL24M-1 | 2.4mm | Male | 50 GHz | 0.5 inch | 0.01 inch | 2.5 mm | 1.3 | 加入询价单 |
| EL24M-2 | 2.4mm | Male | 50 GHz | 0.5 inch | 0.007 inch | 2.5 mm | 1.3 | 加入询价单 |
| EL24M-3 | 2.4mm | Male | 50 GHz | 0.35 inch | 0.007 inch | 3.0 mm | 1.3 | 加入询价单 |
| EL292M-1 | 2.92mm | Male | 40 GHz | 0.5 inch | 0.01 inch | 2.5 mm | 1.25 | 加入询价单 |
| EL292M-2 | 2.92mm | Male | 40 GHz | 0.5 inch | 0.007 inch | 2.5 mm | 1.25 | 加入询价单 |
| EL292M-3 | 2.92mm | Male | 40 GHz | 0.35 inch | 0.007 inch | 3.0 mm | 1.25 | 加入询价单 |
