| P/N | Frequency Min | Frequency Max | Insertion Loss Max | Input VSWR Max | Isolation Min | Amplitude Balance Max | Phase Balance Max | Connector | 加入询价单 |
|---|---|---|---|---|---|---|---|---|---|
| PDM-00506-N16 | 0.5 GHz | 6 GHz | 4.8 dB | 1.5 | 18 dB | ±0.5 dB | ±8° | N | 加入询价单 |

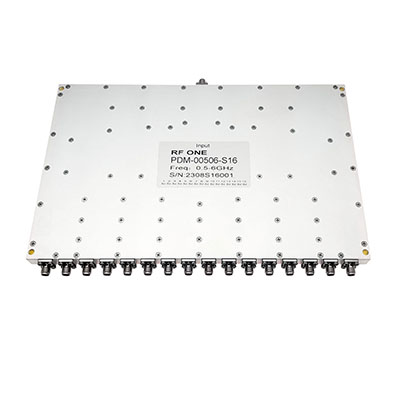

| PDM-00506-S16 | 0.5 GHz | 6 GHz | 4.8 dB | 1.4 | 20 dB | ±0.5 dB | ±8° | SMA | 加入询价单 |
| PDM-00508-S16 | 0.5 GHz | 8 GHz | 4.5 dB | 1.5 | 18 dB | ±0.4 dB | ±8° | SMA | 加入询价单 |

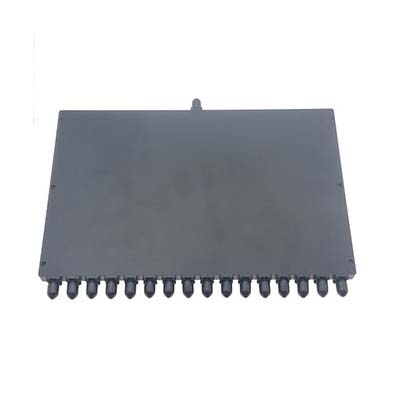

| PDM-00606-S16 | 0.6 GHz | 6 GHz | 3.0 dB | 1.5 | 20 dB | ±0.4 dB | ±6° | SMA | 加入询价单 |

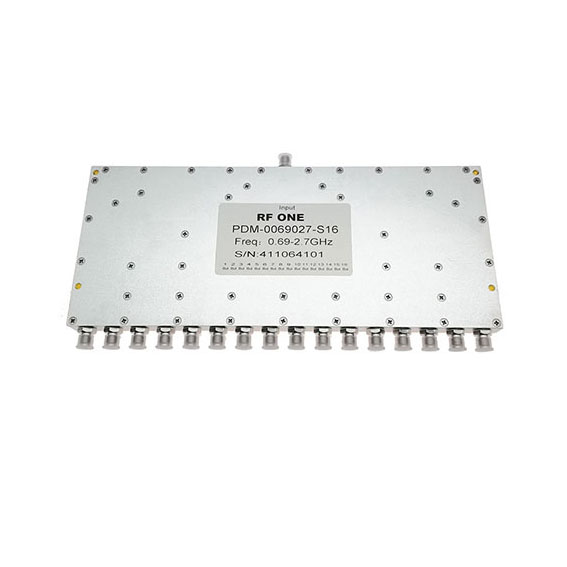

| PDM-0069027-S16 | 0.69 GHz | 2.7 GHz | 1.5 dB | 1.3 | 20 dB | ±0.3 dB | ±5° | SMA | 加入询价单 |

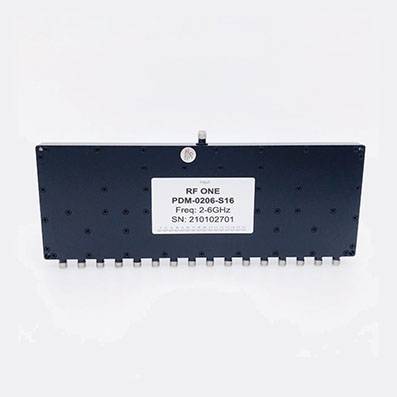

| PDM-0206-S16 | 2 GHz | 6 GHz | 1.6 dB | 1.4 | 18 dB | ±0.3 dB | ±5° | SMA | 加入询价单 |

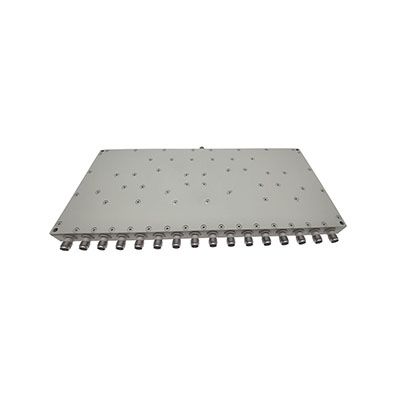

| PDM-0208-S16 | 2 GHz | 8 GHz | 2.8 dB | 1.5 | 18 dB | ±0.4 dB | ±6° | SMA | 加入询价单 |
| PDM-0218-S16 | 2 GHz | 18 GHz | 3.5 dB | 1.7 | 17 dB | ±0.5 dB | ±8° | SMA | 加入询价单 |
| PDM-0408-S16 | 4 GHz | 8 GHz | 2.0 dB | 1.5 | 18 dB | ±0.4 dB | ±5° | SMA | 加入询价单 |

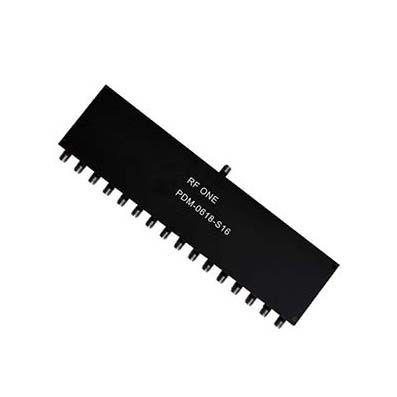

| PDM-0618-S16 | 6 GHz | 18 GHz | 1.8 dB | 1.6 | 17 dB | ±0.6 dB | ±6° | SMA | 加入询价单 |
| PDM-0812-S16 | 8 GHz | 12 GHz | 1.6 dB | 1.3 | 18 dB | ±0.4 dB | ±5° | SMA | 加入询价单 |

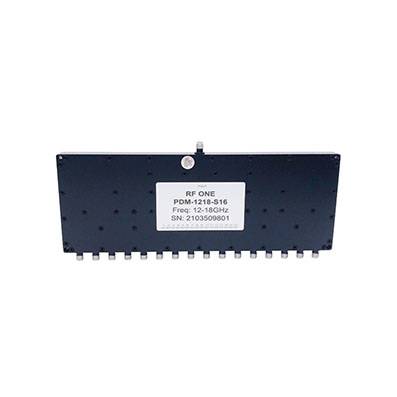

| PDM-1218-S16 | 12 GHz | 18 GHz | 2.2 dB | 1.5 | 16 dB | ±0.3 dB | ±8° | SMA | 加入询价单 |
