| P/N | Frequency Min | Frequency Max | Insertion Loss Max | Input VSWR Max | Isolation Min | Amplitude Balance Max | Phase Balance Max | Connector | 加入询价单 |
|---|---|---|---|---|---|---|---|---|---|

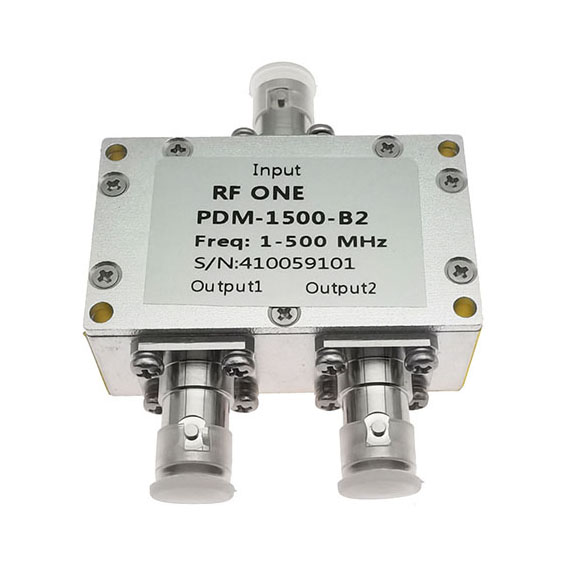

| PDM-1500-B2 | 0.001 GHz | 0.5 GHz | 0.8 dB | 1.3 | 18 dB | ±0.3 dB | ±3° | BNC | 加入询价单 |

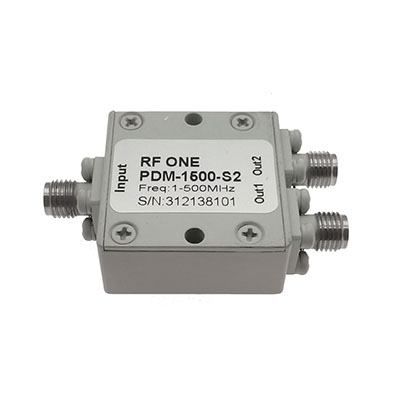

| PDM-1500-S2 | 0.001 GHz | 0.5 GHz | 0.6 dB | 1.3 | 20 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |

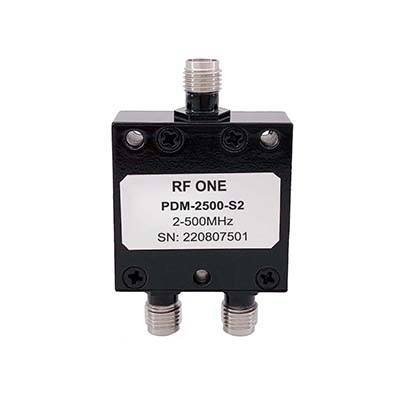

| PDM-2500-S2 | 0.002 GHz | 0.5 GHz | 0.6 dB | 1.25 | 20 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |

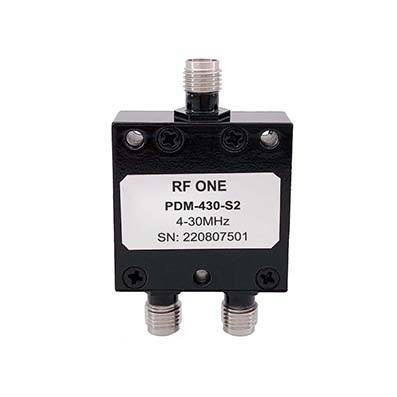

| PDM-430-S2 | 0.004 GHz | 0.03 GHz | 0.3 dB | 1.25 | 25 dB | ±0.2 dB | ±2° | SMA | 加入询价单 |

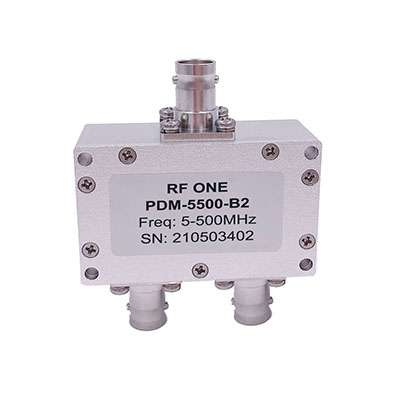

| PDM-5500-B2 | 0.005 GHz | 0.5 GHz | 1.0 dB | 1.25 | 20 dB | ±0.3 dB | ±3° | BNC | 加入询价单 |

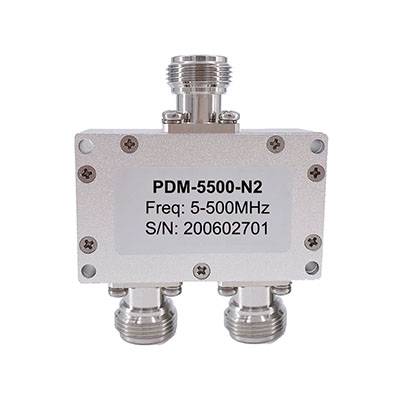

| PDM-5500-N2 | 0.005 GHz | 0.5 GHz | 1.0 dB | 1.25 | 20 dB | ±0.3 dB | ±3° | N | 加入询价单 |

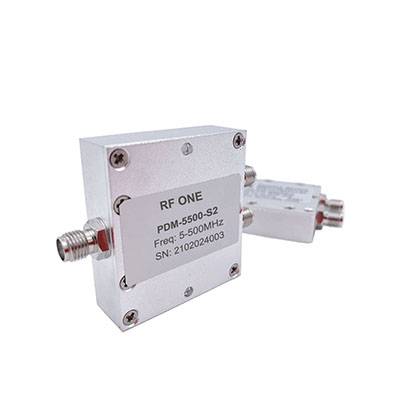

| PDM-5500-S2 | 0.005 GHz | 0.5 GHz | 0.6 dB | 1.25 | 20 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |

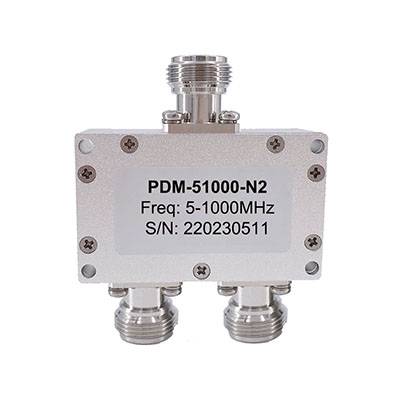

| PDM-51000-N2 | 0.005 GHz | 1 GHz | 1.2 dB | 1.3 | 18 dB | ±0.3 dB | ±3° | N | 加入询价单 |
| PDM-51000-S2 | 0.005 GHz | 1 GHz | 1.0 dB | 1.3 | 18 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |

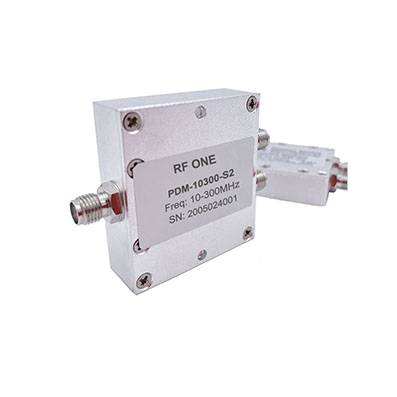

| PDM-10300-S2 | 0.01 GHz | 0.3 GHz | 0.5 dB | 1.2 | 20 dB | ±0.2 dB | ±2° | SMA | 加入询价单 |

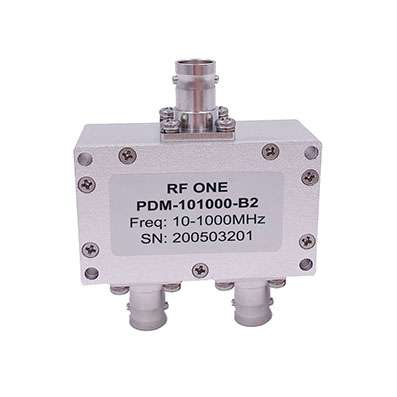

| PDM-101000-B2 | 0.01 GHz | 1 GHz | 1.0 dB | 1.3 | 18 dB | ±0.3 dB | ±3° | BNC | 加入询价单 |

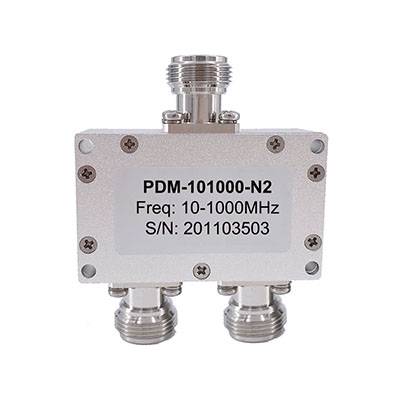

| PDM-101000-N2 | 0.01 GHz | 1 GHz | 1.0 dB | 1.3 | 18 dB | ±0.3 dB | ±3° | N | 加入询价单 |

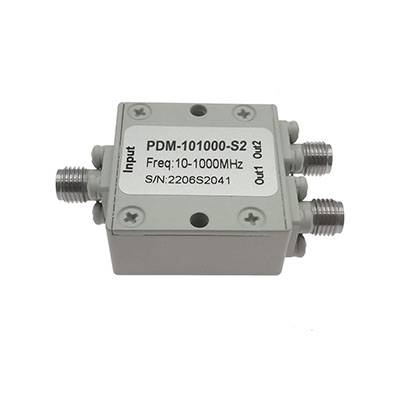

| PDM-101000-S2 | 0.01 GHz | 1 GHz | 1.0 dB | 1.25 | 20 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |

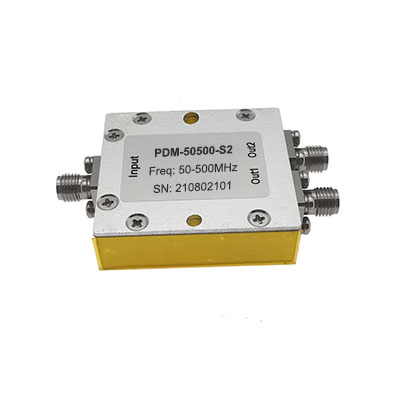

| PDM-50500-S2 | 0.05 GHz | 0.5 GHz | 0.8 dB | 1.25 | 20 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |

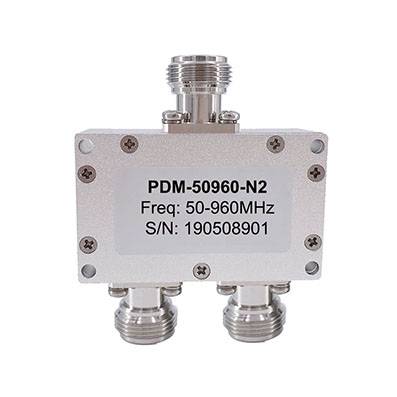

| PDM-50960-N2 | 0.05 GHz | 0.96 GHz | 1.2 dB | 1.25 | 18 dB | ±0.3 dB | ±3° | N | 加入询价单 |
| PDM-00101-S2 | 0.1 GHz | 1 GHz | 1.0 dB | 1.3 | 18 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |

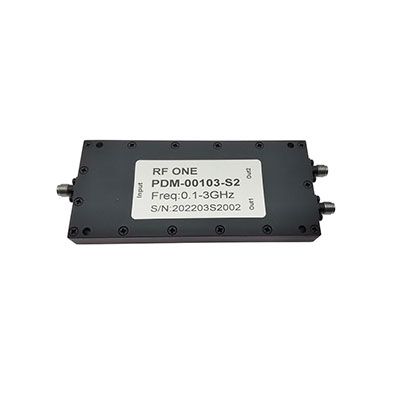

| PDM-00103-S2 | 0.1 GHz | 3 GHz | 2.5 dB | 1.3 | 18 dB | ±0.3 dB | ±4° | SMA | 加入询价单 |

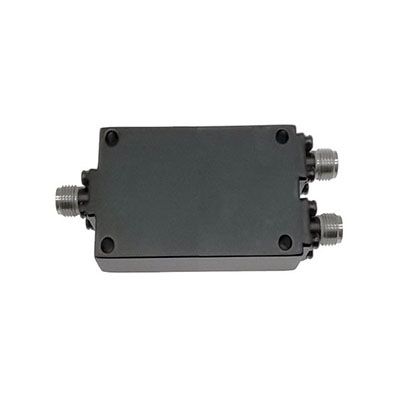

| PDM-002027-S2 | 0.2 GHz | 2.7 GHz | 1.2 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |

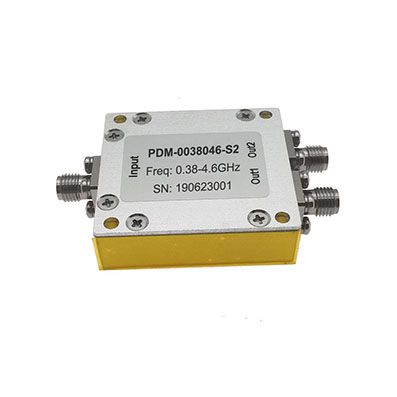

| PDM-0038046-S2 | 0.38 GHz | 4.6 GHz | 1.0 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |

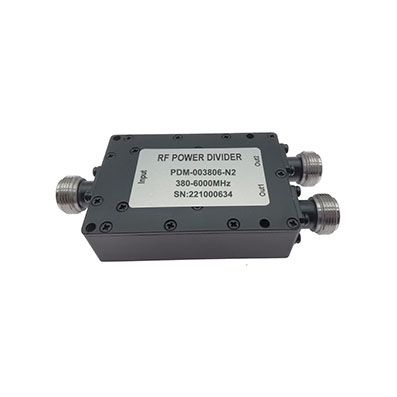

| PDM-003806-N2 | 0.38 GHz | 6 GHz | 1.4 dB | 1.3 | 20 dB | ±0.2 dB | ±3° | N | 加入询价单 |
|
PDM-003806-S2 |
0.38 GHz | 6 GHz | 1.2 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-003808-S2 | 0.38 GHz | 8 GHz | 1.4 dB | 1.25 | 20 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
| PDM-00401-N2-100 | 0.4 GHz | 1 GHz | 0.4 dB | 1.25 | 18 dB | ±0.2 dB | ±2° | N | 加入询价单 |
| PDM-004072-S2 | 0.4 GHz | 7.2 GHz | 1.4 dB | 1.3 | 18 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-00503-N2 | 0.5 GHz | 3 GHz | 1.0 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | N | 加入询价单 |
| PDM-00503-S2 | 0.5 GHz | 3 GHz | 0.6 dB | 1.25 | 20 dB | ±0.2 dB | ±2° | SMA | 加入询价单 |
|
PDM-00506-N2 |
0.5 GHz | 6 GHz | 1.2 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | N | 加入询价单 |
|
PDM-00506-S2 |
0.5 GHz | 6 GHz | 1.0 dB | 1.4 | 18 dB | ±0.2 dB | ±2° | SMA | 加入询价单 |
| PDM-00506-S2A | 0.5 GHz | 6 GHz | 1.2 dB | 1.25 | 20 dB | ±0.2 dB | ±2° | SMA | 加入询价单 |
| PDM-00508-N2 | 0.5 GHz | 8 GHz | 1.8 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | N | 加入询价单 |
| PDM-00508-S2 | 0.5 GHz | 8 GHz | 1.0 dB | 1.4 | 18 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-00510-S2 | 0.5 GHz | 10 GHz | 1.8 dB | 1.3 | 18 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
|
PDM-00518-S2 |
0.5 GHz | 18 GHz | 1.0 dB | 1.5 | 16 dB | ±0.3 dB | ±4° | SMA | 加入询价单 |
| PDM-005265-S2 | 0.5 GHz | 26.5 GHz | 2.4 dB | 1.6 | 16 dB | ±0.4 dB | ±4° | SMA | 加入询价单 |
| PDM-00540-K2 | 0.5 GHz | 40 GHz | 2.8 dB | 1.6 | 15 dB | ±0.4 dB | ±4° | 2.92mm | 加入询价单 |
| PDM-00612-S2A | 0.6 GHz | 12 GHz | 1.8 dB | 1.35 | 18 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
| PDM-0069027-S2 | 0.69 GHz | 2.7 GHz | 0.5 dB | 1.25 | 20 dB | ±0.2 dB | ±2° | SMA | 加入询价单 |
| PDM-00698027-N2 | 0.698 GHz | 2.7 GHz | 0.5 dB | 1.3 | 20 dB | ±0.2 dB | ±2° | N | 加入询价单 |
| PDM-00698038-N2 | 0.698 GHz | 3.8 GHz | 0.8 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | N | 加入询价单 |
| PDM-00698038-S2 | 0.698 GHz | 3.8 GHz | 0.8 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-008027-N2 | 0.8 GHz | 2.7 GHz | 0.5 dB | 1.25 | 20 dB | ±0.2 dB | ±2° | N | 加入询价单 |
| PDM-0102-B2 | 1 GHz | 2 GHz | 1.0 dB | 1.25 | 20 dB | ±0.3 dB | ±3° | BNC | 加入询价单 |
| PDM-0106-S2 | 1 GHz | 6 GHz | 0.6 dB | 1.2 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-0108-S2 | 1 GHz | 8 GHz | 0.8 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-0118-N2 | 1 GHz | 18 GHz | 1.5 dB | 1.4 | 18 dB | ±0.3 dB | ±3° | N | 加入询价单 |
| PDM-0118-S2A | 1 GHz | 18 GHz | 1.2 dB | 1.4 | 18 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
| PDM-01265-S2 | 1 GHz | 26.5 GHz | 1.5 dB | 1.8 | 16 dB | ±0.4 dB | ±5° | SMA | 加入询价单 |
| PDM-01265-K2 | 1 GHz | 26.5 GHz | 1.5 dB | 1.8 | 16 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
|
PDM-0140-K2 |
1 GHz | 40 GHz | 1.8 dB | 1.8 | 16 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-01806-S2 | 1.8 GHz | 6 GHz | 0.6 dB | 1.25 | 20 dB | ±0.2 dB | ±2° | SMA | 加入询价单 |
| PDM-0204-N2 | 2 GHz | 4 GHz | 0.5 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | N | 加入询价单 |
| PDM-0204-S2 | 2 GHz | 4 GHz | 0.5 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-0206-N2 | 2 GHz | 6 GHz | 0.6 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | N | 加入询价单 |
| PDM-0206-S2 | 2 GHz | 6 GHz | 0.5 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-0208-N2 | 2 GHz | 8 GHz | 0.8 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | N | 加入询价单 |
|
PDM-0208-S2A |
2 GHz | 8 GHz | 0.6 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-0212-S2 | 2 GHz | 12 GHz | 0.8 dB | 1.35 | 18 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
| PDM-0218-N2 | 2 GHz | 18 GHz | 1.5 dB | 1.5 | 17 dB | ±0.3 dB | ±4° | N | 加入询价单 |
|
PDM-0218-S2 |
2 GHz | 18 GHz | 1.0 dB | 1.35 | 18 dB | ±0.3 dB | ±4° | SMA | 加入询价单 |
| PDM-02265-S2 | 2 GHz | 26.5 GHz | 1.2 dB | 1.5 | 17 dB | ±0.4 dB | ±4° | SMA | 加入询价单 |
| PDM-02265-K2 | 2 GHz | 26.5 GHz | 1.2 dB | 1.5 | 17 dB | ±0.4 dB | ±4° | 2.92mm | 加入询价单 |
| PDM-0240-K2 | 2 GHz | 40 GHz | 1.5 dB | 1.5 | 17 dB | ±0.4 dB | ±4° | 2.92mm | 加入询价单 |
| PDM-0408-S2 | 4 GHz | 8 GHz | 0.5 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-0412-S2 | 4 GHz | 12 GHz | 0.8 dB | 1.25 | 18 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-0414-S2 | 4 GHz | 14 GHz | 1.0 dB | 1.35 | 18 dB | ±0.3 dB | ±4° | SMA | 加入询价单 |
| PDM-0416-S2 | 4 GHz | 16 GHz | 0.8 dB | 1.35 | 18 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-0440-K2 | 4 GHz | 40 GHz | 1.5 dB | 1.5 | 17 dB | ±0.4 dB | ±4° | 2.92mm | 加入询价单 |
| PDM-0618-S2 | 6 GHz | 18 GHz | 0.8 dB | 1.3 | 18 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
| PDM-06265-S2 | 6 GHz | 26.5 GHz | 0.6 dB | 1.6 | 16 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
| PDM-0640-K2 | 6 GHz | 40 GHz | 1.2 dB | 1.6 | 16 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
|
PDM-0812-S2 |
8 GHz | 12 GHz | 0.5 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-1020-S2 | 10 GHz | 20 GHz | 0.6 dB | 1.4 | 18 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
| PDM-1028-K2 | 10 GHz | 28 GHz | 0.8 dB | 1.5 | 16 dB | ±0.4 dB | ±4° | 2.92mm | 加入询价单 |
| PDM-1035-K2 | 10 GHz | 35 GHz | 1.0 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-1040-K2 | 10 GHz | 40 GHz | 1.0 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-10435-K2 | 10 GHz | 43.5 GHz | 1.3 dB | 1.7 | 16 dB | ±0.5 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-13515-S2 | 13.5 GHz | 15 GHz | 0.5 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-14531-K2 | 14.5 GHz | 31 GHz | 1.0 dB | 1.5 | 16 dB | ±0.4 dB | ±4° | 2.92mm | 加入询价单 |
| PDM-1520-S2 | 15 GHz | 20 GHz | 0.5 dB | 1.5 | 18 dB | ±0.3 dB | ±4° | SMA | 加入询价单 |
| PDM-1632-K2 | 16 GHz | 32 GHz | 1.0 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-18265-S2 | 18 GHz | 26.5 GHz | 0.6 dB | 1.5 | 16 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
| PDM-1831-K2 | 18 GHz | 31 GHz | 0.8 dB | 1.5 | 18 dB | ±0.4 dB | ±4° | 2.92mm | 加入询价单 |
| PDM-1840-K2 | 18 GHz | 40 GHz | 1.0 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-1850-Q2 | 18 GHz | 50 GHz | 1.9 dB | 1.8 | 14 dB | ±0.8 dB | ±8° | 2.4mm | 加入询价单 |
| PDM-2040-K2 | 20 GHz | 40 GHz | 1.0 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-2050-Q2 | 20 GHz | 50 GHz | 1.5 dB | 1.7 | 15 dB | ±0.8 dB | ±8° | 2.4mm | 加入询价单 |
| PDM-2228-K2 | 22 GHz | 28 GHz | 0.6 dB | 1.5 | 18 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-2440-K2 | 24 GHz | 40 GHz | 1.0 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-26540-K2 | 26.5 GHz | 40 GHz | 1.0 dB | 1.5 | 16 dB | ±0.4 dB | ±4° | 2.92mm | 加入询价单 |
| PDM-2628-K2 | 26 GHz | 28 GHz | 0.6 dB | 1.4 | 20 dB | ±0.2 dB | ±3° | 2.92mm | 加入询价单 |
| PDM-2731-K2 | 27 GHz | 31 GHz | 0.6 dB | 1.5 | 16 dB | ±0.4 dB | ±4° | 2.92mm | 加入询价单 |
| PDM-2752-Q2 | 27 GHz | 52 GHz | 1.2 dB | 1.7 | 15 dB | ±0.8 dB | ±6° | 2.4mm | 加入询价单 |
| PDM-285325-K2 | 28.5 GHz | 32.5 GHz | 1.0 dB | 1.5 | 18 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-305325-K2 | 30.5 GHz | 32.5 GHz | 0.7 dB | 1.5 | 18 dB | ±0.3 dB | ±4° | 2.92mm | 加入询价单 |
| PDM-3240-K2 | 32 GHz | 40 GHz | 1.0 dB | 1.5 | 16 dB | ±0.4 dB | ±4° | 2.92mm | 加入询价单 |
| PDM-4346-Q2 | 43 GHz | 46 GHz | 1.6 dB | 1.6 | 16 dB | ±0.3 dB | ±3° | 2.4mm | 加入询价单 |
