深圳如帆提供一系列高品质TVAC热真空射频测试电缆组件，热真空释气满足美国NASA 的ASTM E-595标准。
| P/N | Frequency Range | VSWR Max | IL Max (1 meter) | Connector 1 | Connector 2 | Jacket | 加入询价单 |
|---|---|---|---|---|---|---|---|
|
TVAC-PL360P-24M24M-L |
DC-50 GHz | 1.35 | 4.0 dB | 2.4mm Male | 2.4mm Male | FEP | 加入询价单 |
|
TVAC-PL380P-292M292M-L |
DC-40 GHz | 1.3 | 2.8 dB | 2.92mm Male | 2.92mm Male | FEP | 加入询价单 |
|
TVAC-PL520-SMAMSMAM-L |
DC-26.5 GHz | 1.3 | 1.7 dB | SMA Male | SMA Male | FEP | 加入询价单 |

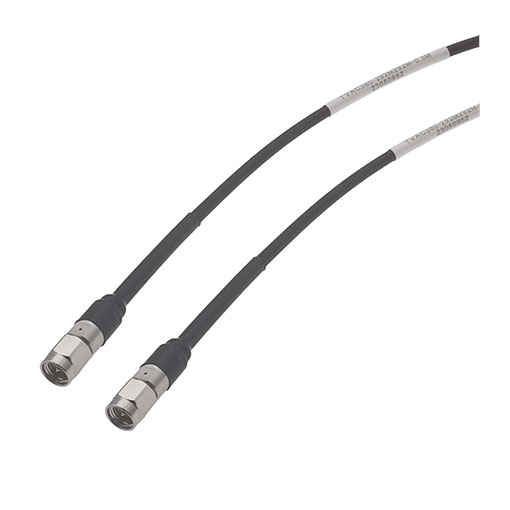

| TVAC380-292M292M-L | DC-40 GHz | 1.35 | 2.8 dB | 2.92mm Male | 2.92mm Male | FEP | 加入询价单 |
| TVAC380-SMAMSMAM-L | DC-26.5 GHz | 1.35 | 2.2 dB | SMA Male | SMA Male | FEP | 加入询价单 |

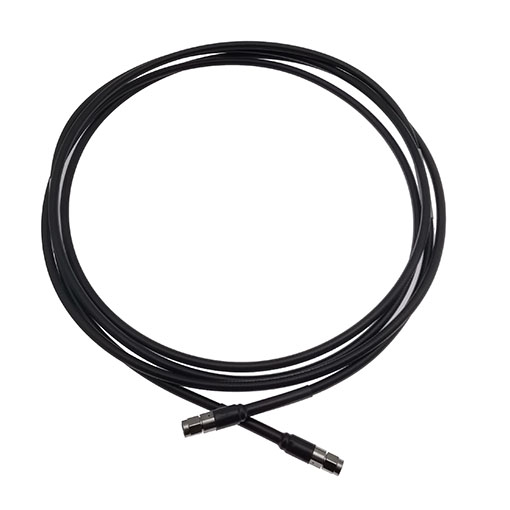

| TVAC520-NMNM-L | DC-18 GHz | 1.25 | 1.5 dB | N Male | N Male | FEP | 加入询价单 |
| TVAC520-SMAMSMAM-L | DC-18 GHz | 1.25 | 1.5 dB | SMA Male | SMA Male | FEP | 加入询价单 |
| TVAC800-NMNM-L | DC-18 GHz | 1.25 | 1.1 dB | N Male | N Male | FEP | 加入询价单 |
| TVAC800-TNCMTNCM-L | DC-18 GHz | 1.25 | 1.4 dB | TNC Male | TNC Male | FEP | 加入询价单 |
| TVAC380-292M292M-L-A | DC-40 GHz | 1.35 | 2.8 dB | 2.92mm Male | 2.92mm Male | Armor | 加入询价单 |
| TVAC380-SMAMSMAM-L-A | DC-26.5 GHz | 1.35 | 2.2 dB | SMA Male | SMA Male | Armor | 加入询价单 |
| TVAC520-NMNM-L-A | DC-18 GHz | 1.25 | 1.5 dB | N Male | N Male | Armor | 加入询价单 |

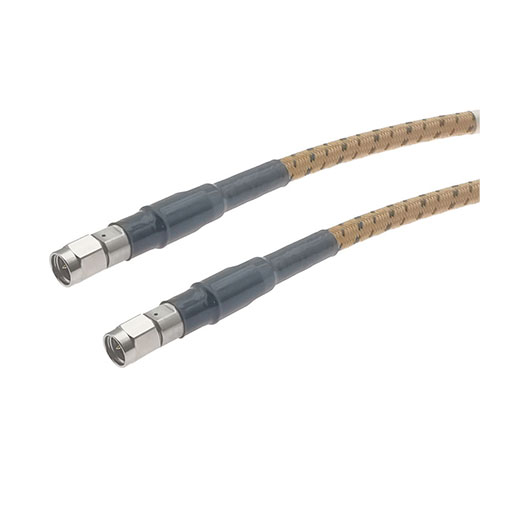

| TVAC520-SMAMSMAM-L-A | DC-18 GHz | 1.25 | 1.5 dB | SMA Male | SMA Male | Armor | 加入询价单 |
| TVAC800-NMNM-L-A | DC-18 GHz | 1.25 | 1.1 dB | N Male | N Male | Armor | 加入询价单 |
