| P/N | No.of Ways | Frequency Range | Insertion Loss Max | Input VSWR Max | Amplitude Balance Max | Phase Balance Max | Input Power Max | Connector | 加入询价单 |
|---|---|---|---|---|---|---|---|---|---|

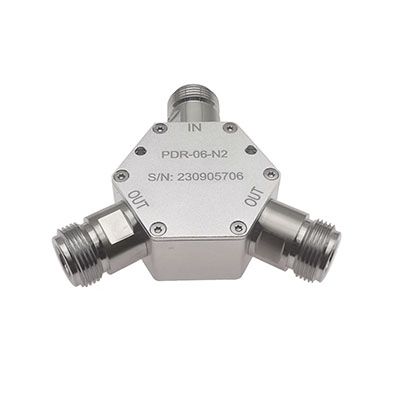

| PDR-06-N2 | 2 Way | DC-6 GHz | 1.0 dB | 1.2 | - | - | 1 W | N | 加入询价单 |
|

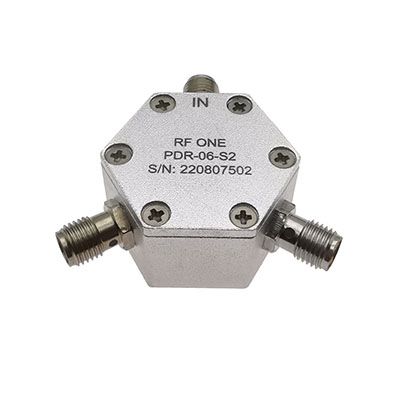

PDR-06-S2 |
2 Way | DC-6 GHz | 0.6 dB | 1.2 | ±0.2 dB | ±3° | 1 W | SMA | 加入询价单 |
|

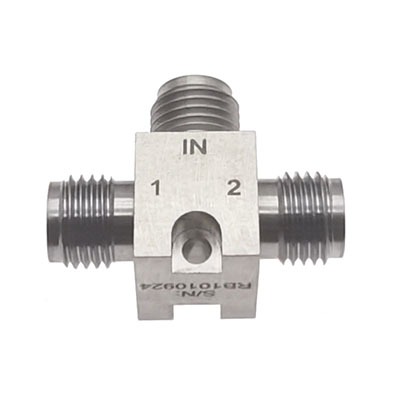

PDR-18-S2A |
2 Way | DC-18 GHz | 0.5 dB | 1.2 | ±0.4 dB | ±4° | 5 W | SMA | 加入询价单 |

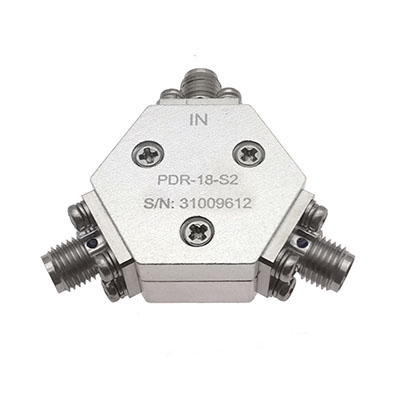

| PDR-18-S2 | 2 Way | DC-18 GHz | 1.5 dB | 1.6 | ±0.8 dB | ±8° | 0.5 W | SMA | 加入询价单 |

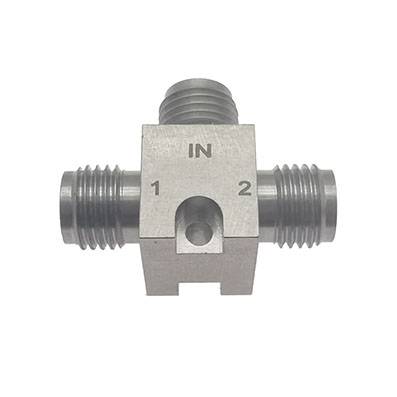

| PDR-34-352A | 2 Way | DC-34 GHz | 0.6 dB | 1.3 | ±0.6 dB | ±6° | 5 W | 3.5mm | 加入询价单 |
|

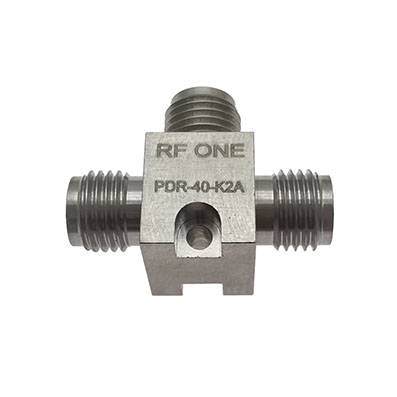

PDR-40-K2A |
2 Way | DC-40 GHz | 0.5 dB | 1.38 | ±0.7 dB | ±7° | 5 W | 2.92mm | 加入询价单 |
|
PDR-50-242 |
2 Way | DC-50 GHz | 2.0 dB | 1.6 | ±0.7 dB | ±7° | 1 W | 2.4mm | 加入询价单 |
|

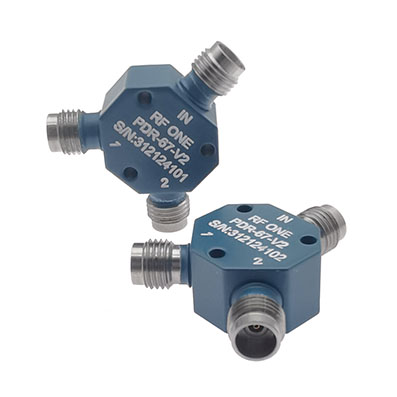

PDR-67-V2 |
2 Way | DC-67 GHz | 2.5 dB | 1.8 | ±0.8 dB | ±8° | 1 W | 1.85mm | 加入询价单 |

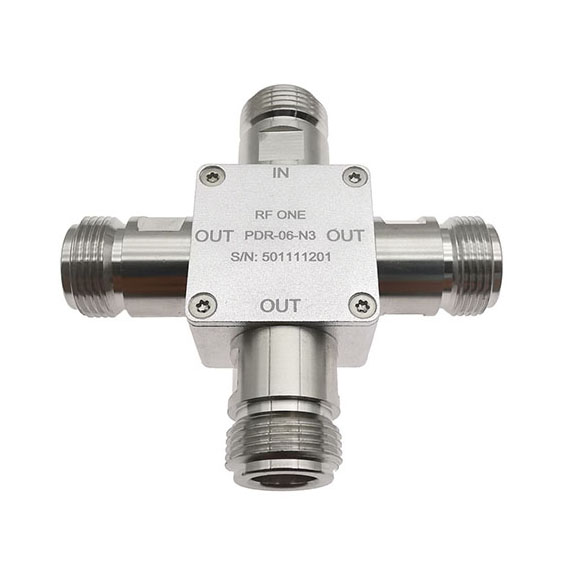

| PDR-06-N3 | 3 Way | DC-6 GHz | 1.2 dB | 1.2 | - | - | 1 W | N | 加入询价单 |

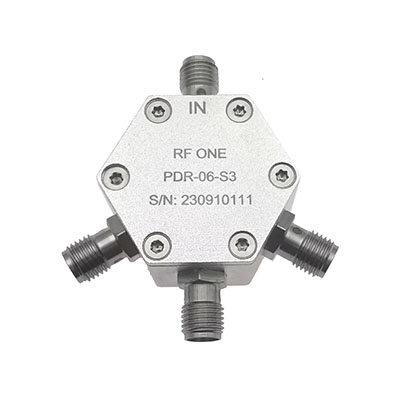

| PDR-06-S3 | 3 Way | DC-6 GHz | 0.8 dB | 1.2 | - | - | 1 W | SMA | 加入询价单 |

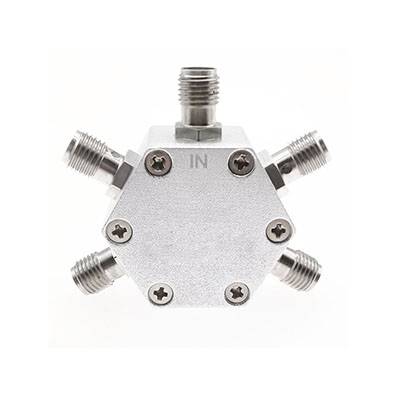

| PDR-06-S4 | 4 Way | DC-6 GHz | 1.2 dB | 1.25 | - | - | 1 W | SMA | 加入询价单 |

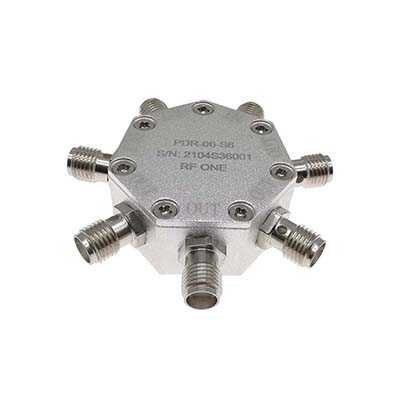

| PDR-06-S6 | 6 Way | DC-6 GHz | 1.5 dB | 1.2 | - | - | 1 W | SMA | 加入询价单 |

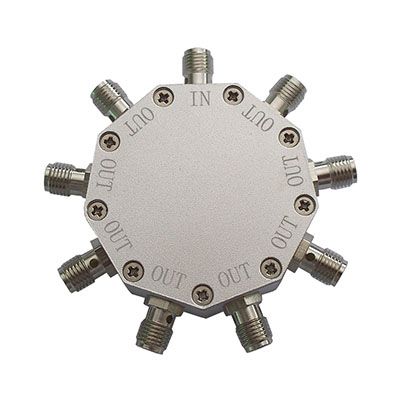

| PDR-06-S8 | 8 Way | DC-6 GHz | 1.5 dB | 1.3 | - | - | 1 W | SMA | 加入询价单 |

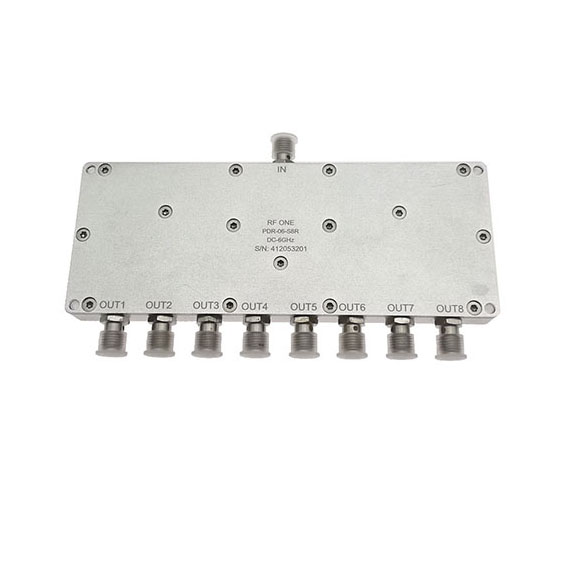

| PDR-06-S8R | 8 Way | DC-6 GHz | 1.5 dB | 1.2 | - | - | 1 W | SMA | 加入询价单 |
