| P/N | Freq Range | Connector 1 | Connector 2 | Body Style | VSWR Max | 加入询价单 |
|---|---|---|---|---|---|---|
| AM11001 | DC-110 GHz | NMD 1.0mm Female | 1.0mm Female | Straight | 1.35 | 加入询价单 |
| AM11002 | DC-110 GHz | NMD 1.0mm Male | 1.0mm Male | Bulkhead | 1.4 | 加入询价单 |

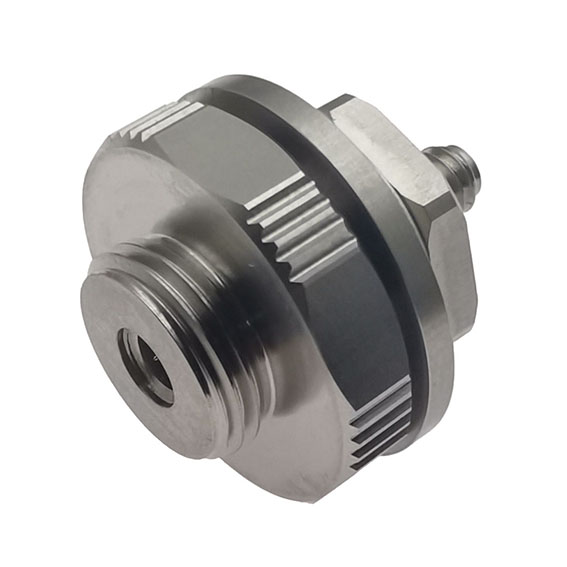

| AM11003 | DC-110 GHz | NMD 1.0mm Male | 1.0mm Female | Bulkhead | 1.4 | 加入询价单 |
| AM6701 | DC-67 GHz | NMD 1.0mm Female | 1.85 Female | Straight | 1.2 | 加入询价单 |

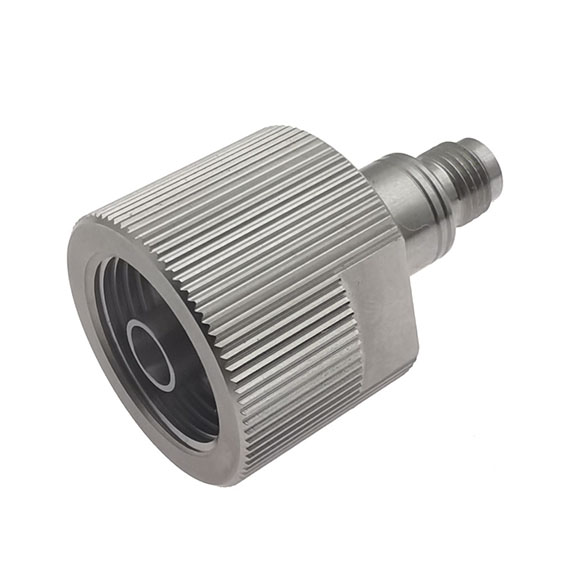

| AM6702 | DC-67 GHz | NMD 1.85mm Female | 1.85 Female | Straight | 1.2 | 加入询价单 |

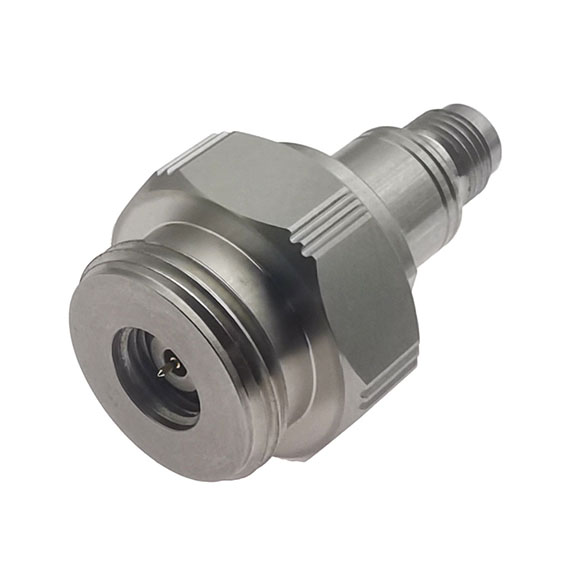

| AM6703 | DC-67 GHz | NMD 1.85mm Male | 1.85 Female | Straight | 1.2 | 加入询价单 |
| AM6704 | DC-67 GHz | NMD 1.85mm Male | 1.85 Female | Bulkhead | 1.2 | 加入询价单 |

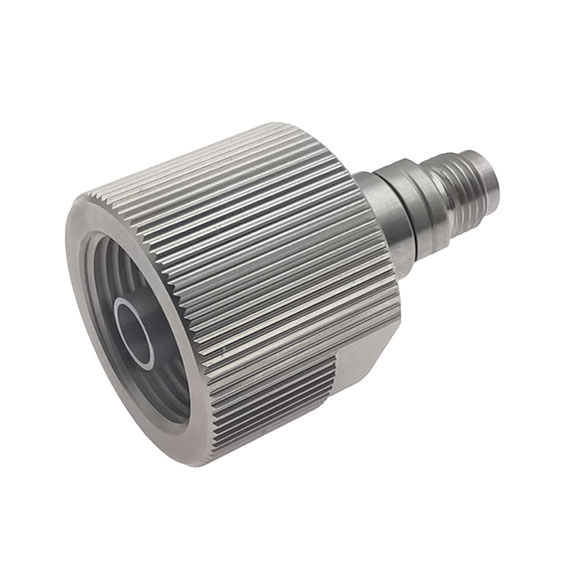

| AM5001 | DC-50 GHz | NMD 2.4mm Female | 2.4 Female | Straight | 1.2 | 加入询价单 |
| AM5002 | DC-50 GHz | NMD 2.4mm Male | 2.4 Female | Straight | 1.2 | 加入询价单 |
| AM4001 | DC-40 GHz | NMD 2.92mm Female | 2.92 Female | Straight | 1.15 | 加入询价单 |
| AM4002 | DC-40 GHz | NMD 2.92mm Male | 2.92 Female | Straight | 1.15 | 加入询价单 |
| AM4003 | DC-40 GHz | NMD 2.92mm Male | 2.92 Female | Bulkhead | 1.15 | 加入询价单 |

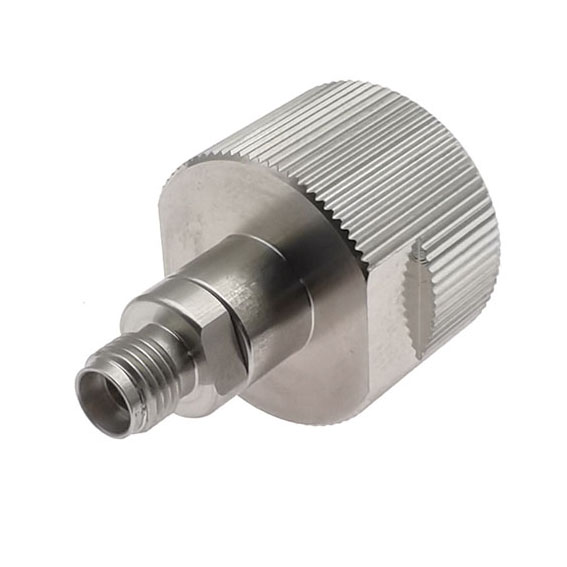

| AM2701 | DC-26.5 GHz | NMD 3.5mm Female | 3.5 Female | Straight | 1.15 | 加入询价单 |
| AM2702 | DC-26.5 GHz | NMD 3.5mm Male | 3.5 Female | Straight | 1.15 | 加入询价单 |
