深圳如帆提供一系列系列内和系列间低互调同轴转接器，包括 DIN 7/16、4.3-10、QMA、4.1、9.5，2.2-5，NEX10，N型和SMA等多种接头组合。我们的低互调转接器采用铜镀三元合金外壳，耐磨耐腐蚀，典型互调值165dBc，并具有优良的驻波性能。
筛选
Connection Type
Connection Type
In Series
Between Series
Body Style
重置筛选
每页 20
123
| P/N |
Connection Type |
Connector 1 |
Connector 2 |
Body Style |
Frequency Range |
VSWR Max |
3rd PIM Max |
加入询价单 |
|

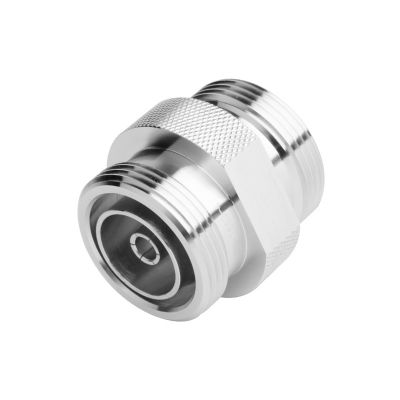

A0601L
|
In Series |
7/16 DIN Female |
7/16 DIN Female |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|

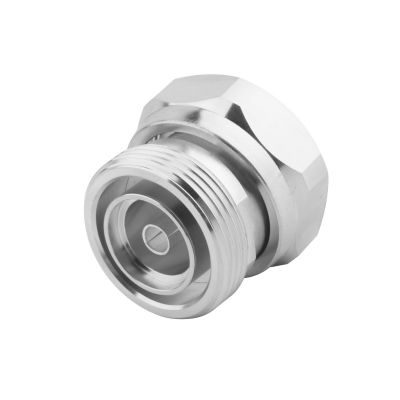

A0602L
|
In Series |
7/16 DIN Female |
7/16 DIN Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|

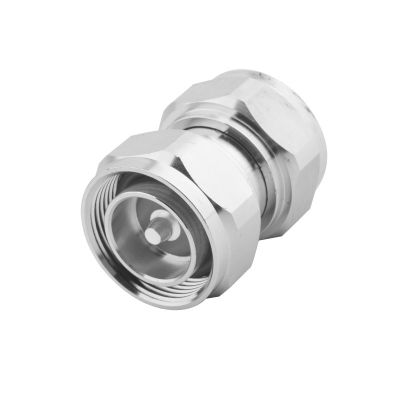

A0603L
|
In Series |
7/16 DIN Male |
7/16 DIN Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|

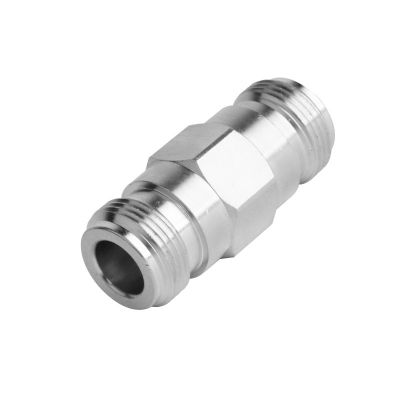

A0604L
|
In Series |
N Female |
N Female |
Straight |
DC-6 GHz |
1.15 |
-160 dBc |
加入询价单 |
|

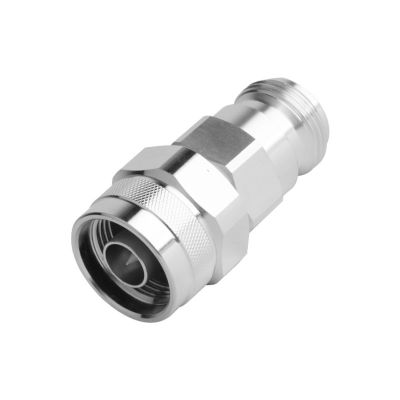

A0605L
|
In Series |
N Female |
N Male |
Straight |
DC-6 GHz |
1.15 |
-160 dBc |
加入询价单 |
|

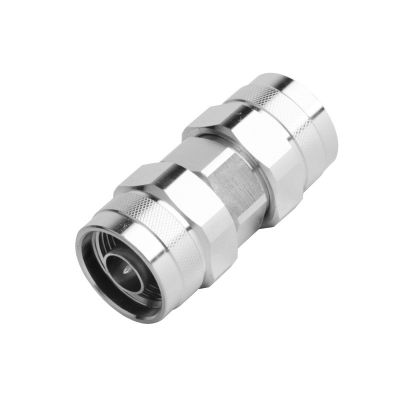

A0606L
|
In Series |
N Male |
N Male |
Straight |
DC-6 GHz |
1.15 |
-160 dBc |
加入询价单 |
|

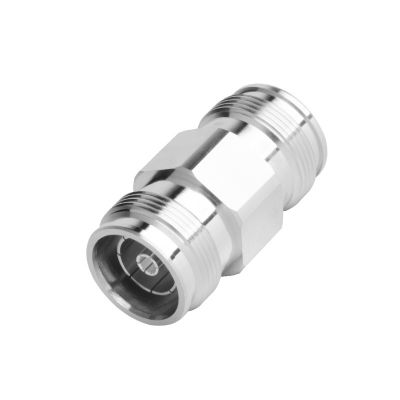

A0607L
|
In Series |
4.3-10 Female |
4.3-10 Female |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|

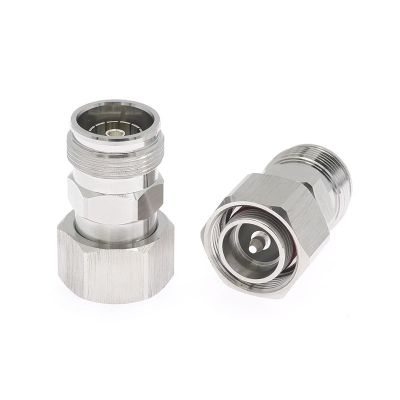

A0608L
|
In Series |
4.3-10 Female |
4.3-10 Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|

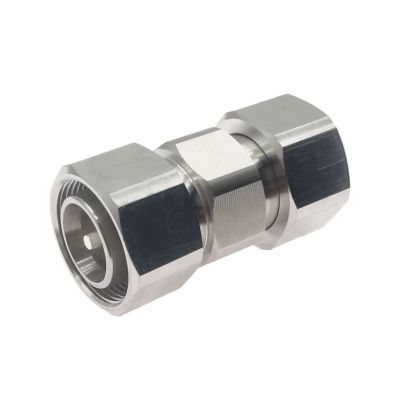

A0609L
|
In Series |
4.3-10 Male |
4.3-10 Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|

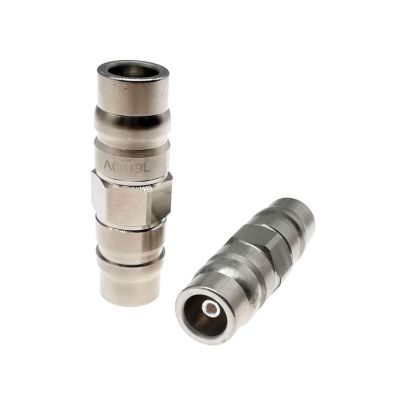

A0619L
|
In Series |
QN Female |
QN Female |
Straight |
DC-6 GHz |
1.25 |
-155 dBc |
加入询价单 |
|
A0620L
|
In Series |
QN Female |
QN Male |
Straight |
DC-6 GHz |
1.25 |
-155 dBc |
加入询价单 |
|
A0621L
|
In Series |
QN Male |
QN Male |
Straight |
DC-6 GHz |
1.25 |
-155 dBc |
加入询价单 |
|

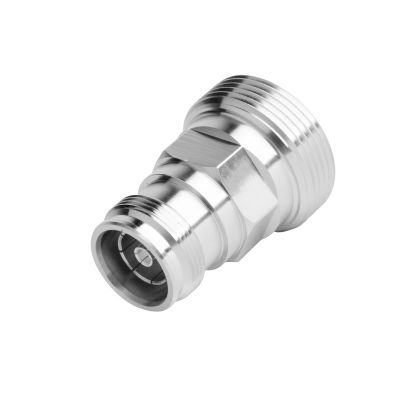

A0631L
|
Between Series |
7/16 DIN Female |
4.3-10 Female |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|

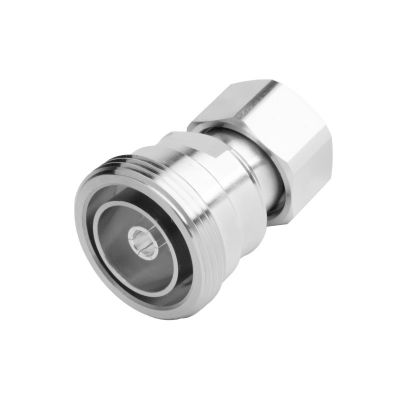

A0632L
|
Between Series |
7/16 DIN Female |
4.3-10 Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|

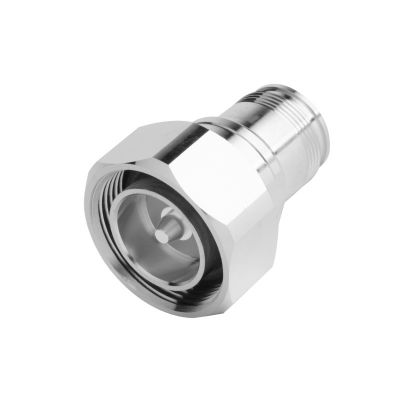

A0633L
|
Between Series |
7/16 DIN Male |
4.3-10 Female |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|

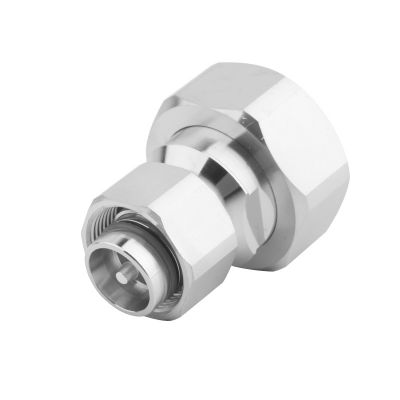

A0634L
|
Between Series |
7/16 DIN Male |
4.3-10 Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|

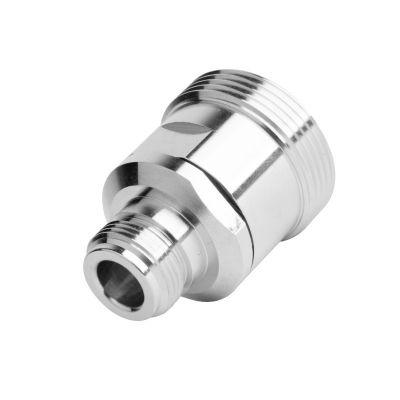

A0639L
|
Between Series |
7/16 DIN Female |
N Female |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|

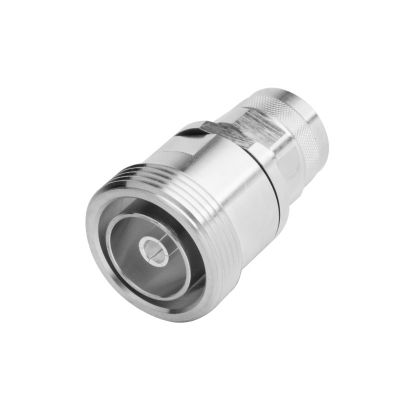

A0640L
|
Between Series |
7/16 DIN Female |
N Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|

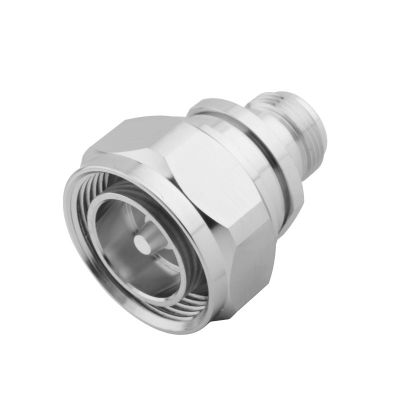

A0641L
|
Between Series |
7/16 DIN Male |
N Female |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|

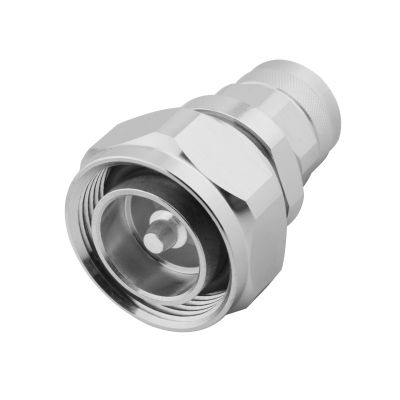

A0642L
|
Between Series |
7/16 DIN Male |
N Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0655L
|
Between Series |
4.3-10 Female |
N Female |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0656L
|
Between Series |
4.3-10 Female |
N Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0657L
|
Between Series |
4.3-10 Male |
N Female |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0658L
|
Between Series |
4.3-10 Male |
N Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0663L
|
Between Series |
N Female |
NEX10 Female |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0664L
|
Between Series |
N Female |
NEX10 Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0665L
|
Between Series |
N Male |
NEX10 Female |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0666L
|
Between Series |
N Male |
NEX10 Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0671L
|
Between Series |
N Female |
QMA Female |
Straight |
DC-6 GHz |
1.25 |
-155 dBc |
加入询价单 |
|
A0672L
|
Between Series |
N Female |
QMA Male |
Straight |
DC-6 GHz |
1.25 |
-155 dBc |
加入询价单 |
|
A0673L
|
Between Series |
N Male |
QMA Female |
Straight |
DC-6 GHz |
1.25 |
-155 dBc |
加入询价单 |
|
A0674L
|
Between Series |
N Male |
QMA Male |
Straight |
DC-6 GHz |
1.25 |
-155 dBc |
加入询价单 |
|
A0675L
|
Between Series |
N Female |
2.2-5 Female |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0676L
|
Between Series |
N Female |
2.2-5 Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0677L
|
Between Series |
N Male |
2.2-5 Female |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0678L
|
Between Series |
N Male |
2.2-5 Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0691L
|
Between Series |
4.3-10 Female |
NEX10 Female |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0692L
|
Between Series |
4.3-10 Female |
NEX10 Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0693L
|
Between Series |
4.3-10 Male |
NEX10 Female |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0694L
|
Between Series |
4.3-10 Male |
NEX10 Male |
Straight |
DC-6 GHz |
1.25 |
-160 dBc |
加入询价单 |
|
A0695L
|
Between Series |
SMA Female |
QMA Female |
Straight |
DC-6 GHz |
1.25 |
-150 dBc |
加入询价单 |
|
A0696L
|
Between Series |
SMA Female |
QMA Male |
Straight |
DC-6 GHz |
1.25 |
-150 dBc |
加入询价单 |
|
A0697L
|
Between Series |
SMA Male |
QMA Female |
Straight |
DC-6 GHz |
1.25 |
-150 dBc |
加入询价单 |
|
A0698L
|
Between Series |
SMA Male |
QMA Male |
Straight |
DC-6 GHz |
1.25 |
-150 dBc |
加入询价单 |
|
A06101L
|
Between Series |
4.3-10 Female |
SMA Female |
Straight |
DC-6 GHz |
1.2 |
-155 dBc |
加入询价单 |
|
A06102L
|
Between Series |
4.3-10 Female |
SMA Male |
Straight |
DC-6 GHz |
1.2 |
-155 dBc |
加入询价单 |
|
A06103L
|
Between Series |
4.3-10 Male |
SMA Female |
Straight |
DC-6 GHz |
1.2 |
-155 dBc |
加入询价单 |
|
A06104L
|
Between Series |
4.3-10 Male |
SMA Male |
Straight |
DC-6 GHz |
1.2 |
-155 dBc |
加入询价单 |
