| P/N | Average Power | Connection Type | Connector | Connector 1 | Frequency Range | Connector 2 | VSWR Max | Body Style | Input Return Loss Min | 3rd PIM Max | 加入询价单 |
|---|---|---|---|---|---|---|---|---|---|---|---|

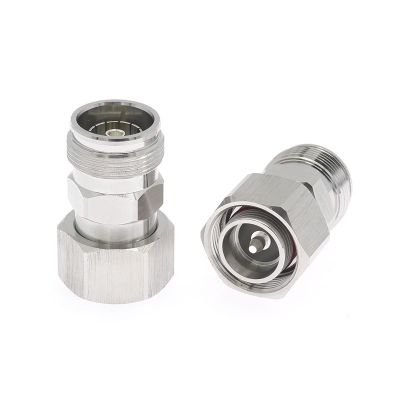

| A0601L | In Series | 7/16 DIN Female | DC-6 GHz | 7/16 DIN Female | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0602L | In Series | 7/16 DIN Female | DC-6 GHz | 7/16 DIN Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0603L | In Series | 7/16 DIN Male | DC-6 GHz | 7/16 DIN Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0604L | In Series | N Female | DC-6 GHz | N Female | 1.15 | Straight | -160 dBc | 加入询价单 | |||
| A0605L | In Series | N Female | DC-6 GHz | N Male | 1.15 | Straight | -160 dBc | 加入询价单 | |||
| A0606L | In Series | N Male | DC-6 GHz | N Male | 1.15 | Straight | -160 dBc | 加入询价单 | |||
| A0607L | In Series | 4.3-10 Female | DC-6 GHz | 4.3-10 Female | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0608L | In Series | 4.3-10 Female | DC-6 GHz | 4.3-10 Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0609L | In Series | 4.3-10 Male | DC-6 GHz | 4.3-10 Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0619L | In Series | QN Female | DC-6 GHz | QN Female | 1.25 | Straight | -155 dBc | 加入询价单 | |||
| A0620L | In Series | QN Female | DC-6 GHz | QN Male | 1.25 | Straight | -155 dBc | 加入询价单 | |||
| A0621L | In Series | QN Male | DC-6 GHz | QN Male | 1.25 | Straight | -155 dBc | 加入询价单 | |||
| A0631L | Between Series | 7/16 DIN Female | DC-6 GHz | 4.3-10 Female | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0632L | Between Series | 7/16 DIN Female | DC-6 GHz | 4.3-10 Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0633L | Between Series | 7/16 DIN Male | DC-6 GHz | 4.3-10 Female | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0634L | Between Series | 7/16 DIN Male | DC-6 GHz | 4.3-10 Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0639L | Between Series | 7/16 DIN Female | DC-6 GHz | N Female | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0640L | Between Series | 7/16 DIN Female | DC-6 GHz | N Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0641L | Between Series | 7/16 DIN Male | DC-6 GHz | N Female | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0642L | Between Series | 7/16 DIN Male | DC-6 GHz | N Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0655L | Between Series | 4.3-10 Female | DC-6 GHz | N Female | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0656L | Between Series | 4.3-10 Female | DC-6 GHz | N Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0657L | Between Series | 4.3-10 Male | DC-6 GHz | N Female | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0658L | Between Series | 4.3-10 Male | DC-6 GHz | N Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0663L | Between Series | N Female | DC-6 GHz | NEX10 Female | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0664L | Between Series | N Female | DC-6 GHz | NEX10 Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0665L | Between Series | N Male | DC-6 GHz | NEX10 Female | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0666L | Between Series | N Male | DC-6 GHz | NEX10 Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0671L | Between Series | N Female | DC-6 GHz | QMA Female | 1.25 | Straight | -155 dBc | 加入询价单 | |||
| A0672L | Between Series | N Female | DC-6 GHz | QMA Male | 1.25 | Straight | -155 dBc | 加入询价单 | |||
| A0673L | Between Series | N Male | DC-6 GHz | QMA Female | 1.25 | Straight | -155 dBc | 加入询价单 | |||
| A0674L | Between Series | N Male | DC-6 GHz | QMA Male | 1.25 | Straight | -155 dBc | 加入询价单 | |||
| A0675L | Between Series | N Female | DC-6 GHz | 2.2-5 Female | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0676L | Between Series | N Female | DC-6 GHz | 2.2-5 Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0677L | Between Series | N Male | DC-6 GHz | 2.2-5 Female | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0678L | Between Series | N Male | DC-6 GHz | 2.2-5 Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0691L | Between Series | 4.3-10 Female | DC-6 GHz | NEX10 Female | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0692L | Between Series | 4.3-10 Female | DC-6 GHz | NEX10 Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0693L | Between Series | 4.3-10 Male | DC-6 GHz | NEX10 Female | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0694L | Between Series | 4.3-10 Male | DC-6 GHz | NEX10 Male | 1.25 | Straight | -160 dBc | 加入询价单 | |||
| A0695L | Between Series | SMA Female | DC-6 GHz | QMA Female | 1.25 | Straight | -150 dBc | 加入询价单 | |||
| A0696L | Between Series | SMA Female | DC-6 GHz | QMA Male | 1.25 | Straight | -150 dBc | 加入询价单 | |||
| A0697L | Between Series | SMA Male | DC-6 GHz | QMA Female | 1.25 | Straight | -150 dBc | 加入询价单 | |||
| A0698L | Between Series | SMA Male | DC-6 GHz | QMA Male | 1.25 | Straight | -150 dBc | 加入询价单 | |||
| A06101L | Between Series | 4.3-10 Female | DC-6 GHz | SMA Female | 1.2 | Straight | -155 dBc | 加入询价单 | |||
| A06102L | Between Series | 4.3-10 Female | DC-6 GHz | SMA Male | 1.2 | Straight | -155 dBc | 加入询价单 | |||
| A06103L | Between Series | 4.3-10 Male | DC-6 GHz | SMA Female | 1.2 | Straight | -155 dBc | 加入询价单 | |||
| A06104L | Between Series | 4.3-10 Male | DC-6 GHz | SMA Male | 1.2 | Straight | -155 dBc | 加入询价单 | |||
| RALXX50FA-A | 50 W | 4.3-10 | 555-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||
|
RALXX50NA-A |
50 W | N | 555-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||
| RALXX100FA-A | 100 W | 4.3-10 | 555-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||
| RALXX100NA-A | 100 W | N | 555-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||
|
RALXX200FA-A |
200 W | 4.3-10 | 555-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||
| RALXX200NA-A | 200 W | N | 555-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||

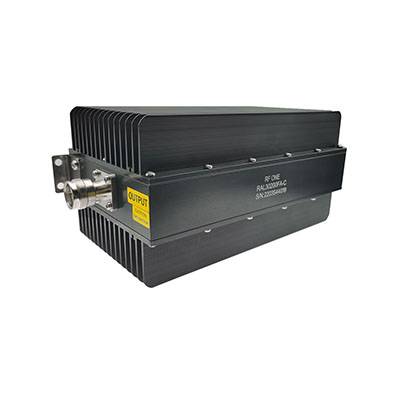

| RAL30200FA-C | 200 W | 4.3-10 | 400-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||
| RAL30200NA-C | 200 W | N | 400-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||
| RALXX300FA | 300 W | 4.3-10 | 555-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||
| RALXX300DA | 300 W | 7/16 DIN | 555-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||
| RALXX300NA | 300 W | N | 555-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||
|
RALXX400FA |
400 W | 4.3-10 | 555-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||
| RALXX400DA | 400 W | 7/16 DIN | 555-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||
| RALXX400NA | 400 W | N | 555-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||
| RALXX400FA1 | 400 W | 4.3-10 | 400-6000 MHz | 18 dB | -160 dBc | 加入询价单 | |||||

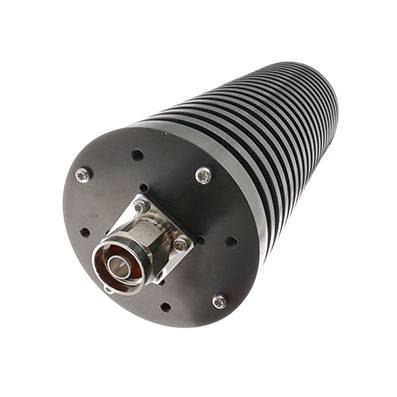

| RTL045043102-D | 50 W | 4.3-10 Male | 380-4000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
| RTL045043101-D | 50 W | 4.3-10 Female | 380-4000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
|
RTL0450D1-D |
50 W | 7/16 DIN Female | 380-4000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
| RTL0450N2-D | 50 W | N Male | 380-4000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
| RTL0450N1-D | 50 W | N Female | 380-4000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
| RTL0410043102-D | 100 W | 4.3-10 Male | 380-4000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
| RTL0410043101-D | 100 W | 4.3-10 Female | 380-4000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
| RTL04100D1-D | 100 W | 7/16 DIN Female | 380-4000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
| RTL04100N2-D | 100 W | N Male | 380-4000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
|
RTL04100N1-D |
100 W | N Female | 380-4000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
| RTL04150N1-DA | 150 W | N Female | 400-6000 MHz | 1.38 | -160 dBc | 加入询价单 | |||||
| RTL0420043101-DA | 200 W | 4.3-10 Female | 400-6000 MHz | 1.38 | -160 dBc | 加入询价单 | |||||
| RTL0520043101-D | 200 W | 4.3-10 Female | 555-6000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
| RTL0520043102-D | 200 W | 4.3-10 Male | 555-6000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
|
RTL05200D1-D |
200 W | 7/16 DIN Female | 555-6000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
| RTL05200D2-D | 200 W | 7/16 DIN Male | 555-6000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
| RTL0430043101-D | 300 W | 4.3-10 Female | 400-6000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
| RTL04300D1-D | 300 W | 7/16 DIN Female | 400-6000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
| RTL04300N2-D | 300 W | N Female | 400-6000 MHz | 1.3 | -160 dBc | 加入询价单 | |||||
|
RTL04300N1-D |
300 W | N Female | 400-6000 MHz | 1.3 | -160 dBc | 加入询价单 |
