深圳如帆提供各种高性能射频电缆组件，覆盖频率范围DC至110GHz，在电缆尺寸、柔韧性、损耗和连接器等方面具有多种选择，满足不同的应用要求。我们在射频电缆的材料应用、生产工艺、检验检测和执行标准等方面积累了丰富的经验，提供高度可靠的一系列射频电缆组件，产品广泛应用于测试测量、高频互连、航空电子、相控阵雷达等领域。
| P/N | Frequency Range | VSWR Max | IL Max (1 meter) | IL Max (63CM) | Connector 1 | Connector 2 | Jacket | 加入询价单 |
|---|---|---|---|---|---|---|---|---|
|
PL140-1M1M-L-A |
DC-110 GHz | 1.35 | 15.9 dB | 1.0mm Male | 1.0mm Male | 加入询价单 | ||
| PL180P-1M1M-L-A | DC-110 GHz | 1.35 | 14.4 dB | 1.0mm Male | 1.0mm Male | 加入询价单 | ||
|
PL230P-185M185M-L-A |
DC-67 GHz | 1.4 | 7.1 dB | 1.85mm Male | 1.85mm Male | 加入询价单 | ||
| PL360P-24M24M-L-A | DC-50 GHz | 1.35 | 4.0 dB | 2.4mm Male | 2.4mm Male | 加入询价单 | ||
|
PL380P-292M292M-L-A |
DC-40 GHz | 1.3 | 2.8 dB | 2.92mm Male | 2.92mm Male | 加入询价单 | ||
| PL400-292M292M-L-A | DC-40 GHz | 1.3 | 2.6 dB | 2.92mm Male | 2.92mm Male | 加入询价单 | ||
| PL520P-35M35M-L-A | DC-26.5 GHz | 1.3 | 1.7 dB | 3.5mm Male | 3.5mm Male | 加入询价单 | ||
| PL520P-SMAMSMAM-L-A | DC-26.5 GHz | 1.3 | 1.7 dB | SMA Male | SMA Male | 加入询价单 | ||
| PL520P-NMNM-L-A | DC-18 GHz | 1.25 | 1.5 dB | N Male | N Male | 加入询价单 | ||
| UF370P-24M24M-L-AU | DC-50 GHz | 1.35 | 4.9 dB | 2.4mm Male | 2.4mm Male | 加入询价单 | ||
| UF450-292M292M-L-AU | DC-40 GHz | 1.3 | 3.7 dB | 2.92mm Male | 2.92mm Male | 加入询价单 | ||
|
UF520-SMAMSMAM-L-AU |
DC-26.5 GHz | 1.25 | 3.1 dB | SMA Male | SMA Male | 加入询价单 | ||
| UF520-NMNM-L-AU | DC-18 GHz | 1.25 | 2.5 dB | N Male | N Male | 加入询价单 | ||
| UF550-NMNM-L-AU | DC-18 GHz | 1.3 | 1.8 dB | N Male | N Male | 加入询价单 | ||
| PL230P-185M185M-L | DC-67 GHz | 1.4 | 7.1 dB | 1.85mm Male | 1.85mm Male | 加入询价单 | ||
| PL360P-24M24M-L | DC-50 GHz | 1.35 | 4.0 dB | 2.4mm Male | 2.4mm Male | 加入询价单 | ||
|
PL380P-292M292M-L |
DC-40 GHz | 1.3 | 2.8 dB | 2.92mm Male | 2.92mm Male | 加入询价单 | ||
| PL520P-SMAMSMAM-L | DC-26.5 GHz | 1.3 | 1.7 dB | SMA Male | SMA Male | 加入询价单 | ||
| PL520P-NMNM-L | DC-18 GHz | 1.25 | 1.5 dB | N Male | N Male | 加入询价单 | ||
| PL520P-NMNM-L-RA | DC-18 GHz | 1.25 | 1.5 dB | N Male | N Male | 加入询价单 | ||
|
UF370P-292M292M-L |
DC-40 GHz | 1.3 | 4.3 dB | 2.92mm Male | 2.92mm Male | 加入询价单 | ||
| UF450-292M292M-L | DC-40 GHz | 1.3 | 3.7 dB | 2.92mm Male | 2.92mm Male | 加入询价单 | ||
| UF520-SMAMSMAM-L | DC-26.5 GHz | 1.25 | 3.1 dB | SMA Male | SMA Male | 加入询价单 | ||
| UF520-NMNM-L | DC-18 GHz | 1.3 | 2.5 dB | N Male | N Male | 加入询价单 | ||
|
DF480-SMAMSMAM-L |
DC-26.5 GHz | 1.3 | 2.5 dB | SMA Male | SMA Male | 加入询价单 | ||
|

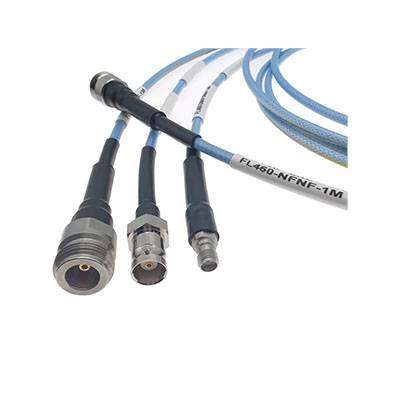

FL460-SMAMSMAM-L |
DC-18 GHz | 1.25 | 1.9 dB | SMA Male | SMA Male | 加入询价单 | ||
| FL520-SMAMSMAM-L | DC-18 GHz | 1.25 | 1.7 dB | SMA Male | SMA Male | 加入询价单 | ||
| FL520-NMNM-L | DC-18 GHz | 1.3 | 1.7 dB | N Male | N Male | 加入询价单 | ||
| FL620-TNCMTNCM-L | DC-18 GHz | 1.35 | 1.5 dB | TNC Male | TNC Male | 加入询价单 | ||
| MB260L-24M24M-L | DC-50 GHz | 1.45 | 5.7 dB | 2.4mm Male | 2.4mm Male | 加入询价单 | ||
|
MB260L-292M292M-L |
DC-40 GHz | 1.35 | 5.0 dB | 2.92mm Male | 2.92mm Male | 加入询价单 | ||
| MB250-292M292M-L | DC-40 GHz | 1.35 | 6.6 dB | 2.92mm Male | 2.92mm Male | 加入询价单 | ||
| MB360-SMAMSMAM-L | DC-26.5 GHz | 1.35 | 2.7 dB | SMA Male | SMA Male | 加入询价单 | ||
| SP280-292M292M-L | DC-40 GHz | 1.3 | 6.7 dB | 2.92mm Male | 2.92mm Male | 加入询价单 | ||
|
SP280-SMAMSMAM-L |
DC-18 GHz | 1.3 | 4.2 dB | SMA Male | SMA Male | 加入询价单 | ||
| SP400-SMAMSMAM-L | DC-18 GHz | 1.2 | 2.7 dB | SMA Male | SMA Male | 加入询价单 | ||
| SP400-NMNM-L | DC-18 GHz | 1.3 | 2.7 dB | N Male | N Male | 加入询价单 | ||
| PL400-292M292M-L | DC-40GHz | 1.3 | 2.6 dB | 2.92mm Male | 2.92mm Male | 加入询价单 | ||
| PL800-NMNM-L | DC-18GHz | 1.3 | 1.1 dB | N Male | N Male | 加入询价单 | ||

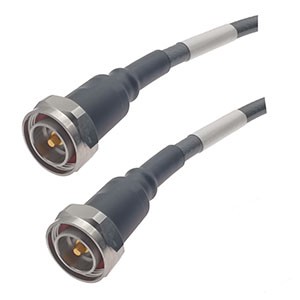

| PL800-716M716M-L | DC-6GHz | 1.3 | 0.6 dB | DIN 7/16 Male | DIN 7/16 Male | 加入询价单 | ||
| PL1200-716M716M-L | DC-6GHz | 1.3 | 0.5 dB | DIN 7/16 Male | DIN 7/16 Male | 加入询价单 | ||
|
TVAC380-292M292M-L |
DC-40 GHz | 1.35 | 2.8 dB | 2.92mm Male | 2.92mm Male | FEP | 加入询价单 | |
| TVAC380-SMAMSMAM-L | DC-26.5 GHz | 1.35 | 2.2 dB | SMA Male | SMA Male | FEP | 加入询价单 | |
| TVAC520-NMNM-L | DC-18 GHz | 1.25 | 1.5 dB | N Male | N Male | FEP | 加入询价单 | |
| TVAC520-SMAMSMAM-L | DC-18 GHz | 1.25 | 1.5 dB | SMA Male | SMA Male | FEP | 加入询价单 | |
| TVAC800-NMNM-L | DC-18 GHz | 1.25 | 1.1 dB | N Male | N Male | FEP | 加入询价单 | |
| TVAC800-TNCMTNCM-L | DC-18 GHz | 1.25 | 1.4 dB | TNC Male | TNC Male | FEP | 加入询价单 | |
|
TVAC380-292M292M-L-A |
DC-40 GHz | 1.35 | 2.8 dB | 2.92mm Male | 2.92mm Male | Armor | 加入询价单 | |
| TVAC380-SMAMSMAM-L-A | DC-26.5 GHz | 1.35 | 2.2 dB | SMA Male | SMA Male | Armor | 加入询价单 | |
| TVAC520-NMNM-L-A | DC-18 GHz | 1.25 | 1.5 dB | N Male | N Male | Armor | 加入询价单 | |
| TVAC520-SMAMSMAM-L-A | DC-18 GHz | 1.25 | 1.5 dB | SMA Male | SMA Male | Armor | 加入询价单 | |
| TVAC800-NMNM-L-A | DC-18 GHz | 1.25 | 1.1 dB | N Male | N Male | Armor | 加入询价单 | |
| V67-68M68F-L | DC-67 GHz | 1.4 | 4.7 dB | NMD 1.85mm Male | NMD 1.85mm Female | 加入询价单 | ||
| V67-68M68M-L | DC-67 GHz | 1.4 | 4.7 dB | NMD 1.85mm Male | NMD 1.85mm Male | 加入询价单 | ||
| V67-68F68F-L | DC-67 GHz | 1.4 | 4.7 dB | NMD 1.85mm Female | NMD 1.85mm Female | 加入询价单 | ||
| V67-68M67F-L | DC-67 GHz | 1.4 | 4.7 dB | NMD 1.85mm Male | 1.85mm Female | 加入询价单 | ||
| V67-68F67F-L | DC-67 GHz | 1.4 | 4.7 dB | NMD 1.85mm Female | 1.85mm Female | 加入询价单 | ||
| V50-51M51F-L | DC-50 GHz | 1.35 | 2.7 dB | NMD 2.4mm Male | NMD 2.4mm Female | 加入询价单 | ||
| V50-51M51M-L | DC-50 GHz | 1.35 | 2.7 dB | NMD 2.4mm Male | NMD 2.4mm Male | 加入询价单 | ||
| V50-51F51F-L | DC-50 GHz | 1.35 | 2.7 dB | NMD 2.4mm Female | NMD 2.4mm Female | 加入询价单 | ||
| V50-51M50F-L | DC-50 GHz | 1.35 | 2.7 dB | NMD 2.4mm Male | 2.4mm Female | 加入询价单 | ||
| V50-51F50F-L | DC-50 GHz | 1.35 | 2.7 dB | NMD 2.4mm Female | 2.4mm Female | 加入询价单 | ||
| V40-41M41F-L | DC-40 GHz | 1.3 | 2.4 dB | NMD 2.92mm Male | NMD 2.92mm Female | 加入询价单 | ||
| V40-41M41M-L | DC-40 GHz | 1.3 | 2.4 dB | NMD 2.92mm Male | NMD 2.92mm Male | 加入询价单 | ||
| V40-41F41F-L | DC-40 GHz | 1.3 | 2.4 dB | NMD 2.92mm Female | NMD 2.92mm Female | 加入询价单 | ||
| V40-41M40F-L | DC-40 GHz | 1.3 | 2.4 dB | NMD 2.92mm Male | 2.92mm Female | 加入询价单 | ||
| V40-41F40F-L | DC-40 GHz | 1.3 | 2.4 dB | NMD 2.92mm Female | 2.92mm Female | 加入询价单 | ||
| V27-34M34F-L | DC-26.5 GHz | 1.25 | 1.4 dB | NMD 3.5mm Male | NMD 3.5mm Female | 加入询价单 | ||
| V27-34M34M-L | DC-26.5 GHz | 1.25 | 1.4 dB | NMD 3.5mm Male | NMD 3.5mm Male | 加入询价单 | ||
| V27-34F34F-L | DC-26.5 GHz | 1.25 | 1.4 dB | NMD 3.5mm Female | NMD 3.5mm Female | 加入询价单 | ||
| V27-34M33F-L | DC-26.5 GHz | 1.25 | 1.4 dB | NMD 3.5mm Male | 3.5mm Female | 加入询价单 | ||
| V27-34F33F-L | DC-26.5 GHz | 1.25 | 1.4 dB | NMD 3.5mm Female | 3.5mm Female | 加入询价单 |
