| P/N | Frequency Min | Frequency Max | Insertion Loss Max | Input VSWR Max | Isolation Min | Amplitude Balance Max | Phase Balance Max | Connector | 加入询价单 |
|---|---|---|---|---|---|---|---|---|---|
| PDM-1500-S4 | 0.001 GHz | 0.5 GHz | 1.3 dB | 1.45 | 18 dB | ±0.4 dB | ±4° | SMA | 加入询价单 |
| PDM-51000-S4 | 0.005 GHz | 1 GHz | 1.6 dB | 1.3 | 18 dB | ±0.4 dB | ±4° | SMA | 加入询价单 |
| PDM-10300-S4 | 0.01 GHz | 0.3 GHz | 1.0 dB | 1.25 | 20 dB | ±0.4 dB | ±4° | SMA | 加入询价单 |
| PDM-101000-S4 | 0.01 GHz | 1 GHz | 1.6 dB | 1.25 | 18 dB | ±0.4 dB | ±4° | SMA | 加入询价单 |
| PDM-50960-N4 | 0.05 GHz | 0.96 GHz | 2.0 dB | 1.25 | 18 dB | ±0.4 dB | ±4° | N | 加入询价单 |
| PDM-002027-S4 | 0.2 GHz | 2.7 GHz | 2.0 dB | 1.35 | 18 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
| PDM-0038046-S4 | 0.38 GHz | 4.6 GHz | 1.5 dB | 1.3 | 18 dB | ±0.3 dB | ±4° | SMA | 加入询价单 |
| PDM-003806-N4 | 0.38 GHz | 6 GHz | 2.0 dB | 1.35 | 18 dB | ±0.3 dB | ±4° | N | 加入询价单 |
|
PDM-003806-S4 |
0.38 GHz | 6 GHz | 1.8 dB | 1.25 | 18 dB | ±0.2 dB | ±4° | SMA | 加入询价单 |
| PDM-003808-S4 | 0.38 GHz | 8 GHz | 2.0 dB | 1.25 | 20 dB | ±0.3 dB | ±4° | SMA | 加入询价单 |
| PDM-004072-S4 | 0.4 GHz | 7.2 GHz | 2.0 dB | 1.3 | 18 dB | ±0.3 dB | ±4° | SMA | 加入询价单 |
| PDM-00501-S4 | 0.5 GHz | 1 GHz | 0.5 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-00503-S4 | 0.5 GHz | 3 GHz | 0.7 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
|
PDM-00506-N4 |
0.5 GHz | 6 GHz | 2.0 dB | 1.3 | 18 dB | ±0.3 dB | ±4° | N | 加入询价单 |
|
PDM-00506-S4 |
0.5 GHz | 6 GHz | 1.8 dB | 1.25 | 20 dB | ±0.3 dB | ±4° | SMA | 加入询价单 |
| PDM-00506-S4A | 0.5 GHz | 6 GHz | 1.6 dB | 1.25 | 20 dB | ±0.3 dB | ±4° | SMA | 加入询价单 |
| PDM-00508-S4 | 0.5 GHz | 8 GHz | 2.0 dB | 1.3 | 18 dB | ±0.3 dB | ±4° | SMA | 加入询价单 |
|
PDM-00518-S4 |
0.5 GHz | 18 GHz | 2.5 dB | 2 | 15 dB | ±0.8 dB | ±8° | SMA | 加入询价单 |
| PDM-00510-S4 | 0.5 GHz | 10 GHz | 2.2 dB | 1.35 | 18 dB | ±0.3 dB | ±4° | SMA | 加入询价单 |
| PDM-005265-S4 | 0.5 GHz | 26.5 GHz | 3.0 dB | 1.5 | 14 dB | ±0.5 dB | ±6° | SMA | 加入询价单 |
| PDM-00540-K4 | 0.5 GHz | 40 GHz | 5.0 dB | 1.7 | 11 dB | ±0.5 dB | ±7° | 2.92mm | 加入询价单 |

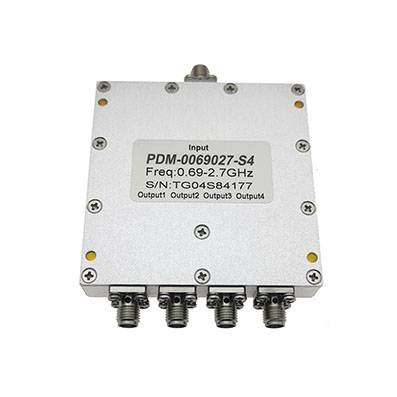

| PDM-0069027-S4 | 0.69 GHz | 2.7 GHz | 0.8 dB | 1.25 | 18 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
| PDM-00698038-N4 | 0.698 GHz | 3.8 GHz | 1.6 dB | 1.3 | 24 dB | ±0.3 dB | ±4° | N | 加入询价单 |
| PDM-00698038-S4 | 0.698 GHz | 3.8 GHz | 1.4 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | 加入询价单 |
| PDM-0106-S4 | 1 GHz | 6 GHz | 1.0 dB | 1.3 | 20 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
| PDM-0108-S4 | 1 GHz | 8 GHz | 1.4 dB | 1.3 | 20 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
|
PDM-0118-S4 |
1 GHz | 18 GHz | 2.5 dB | 1.55 | 16 dB | ±0.4 dB | ±5° | SMA | 加入询价单 |
| PDM-01265-S4 | 1 GHz | 26.5 GHz | 3.0 dB | 1.5 | 16 dB | ±0.5 dB | ±6° | SMA | 加入询价单 |
| PDM-0132-K4 | 1 GHz | 32 GHz | 3.5 dB | 1.6 | 16 dB | ±0.5 dB | ±6° | 2.92mm | 加入询价单 |
|
PDM-0140-K4 |
1 GHz | 40 GHz | 3.5 dB | 1.8 | 16 dB | ±0.5 dB | ±8° | 2.92mm | 加入询价单 |
| PDM-0140-K4A | 1 GHz | 40 GHz | 4.8 dB | 1.7 | 16 dB | ±0.5 dB | ±7° | 2.92mm | 加入询价单 |
| PDM-0204-S4 | 2 GHz | 4 GHz | 0.6 dB | 1.25 | 20 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
| PDM-0206-N4 | 2 GHz | 6 GHz | 0.8 dB | 1.25 | 20 dB | ±0.3 dB | ±3° | N | 加入询价单 |
| PDM-0206-S4 | 2 GHz | 6 GHz | 0.8 dB | 1.25 | 20 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
| PDM-0208-N4 | 2 GHz | 8 GHz | 1.2 dB | 1.4 | 18 dB | ±0.3 dB | ±4° | N | 加入询价单 |
|
PDM-0208-S4A |
2 GHz | 8 GHz | 1.0 dB | 1.35 | 18 dB | ±0.3 dB | ±4° | SMA | 加入询价单 |
| PDM-0218-N4 | 2 GHz | 18 GHz | 2.2 dB | 1.6 | 17 dB | ±0.4 dB | ±6° | N | 加入询价单 |
|
PDM-0218-S4 |
2 GHz | 18 GHz | 1.6 dB | 1.5 | 18 dB | ±0.4 dB | ±6° | SMA | 加入询价单 |
| PDM-0240-K4 | 2 GHz | 40 GHz | 3.2 dB | 1.8 | 16 dB | ±0.5 dB | ±8° | 2.92mm | 加入询价单 |
| PDM-0408-S4 | 4 GHz | 8 GHz | 1.0 dB | 1.35 | 18 dB | ±0.3 dB | ±4° | SMA | 加入询价单 |
| PDM-0412-S4 | 4 GHz | 12 GHz | 1.2 dB | 1.4 | 18 dB | ±0.2 dB | ±4° | SMA | 加入询价单 |
| PDM-0416-S4 | 4 GHz | 16 GHz | 1.5 dB | 1.4 | 18 dB | ±0.3 dB | ±5° | SMA | 加入询价单 |
| PDM-0618-S4 | 6 GHz | 18 GHz | 1.0 dB | 1.4 | 18 dB | ±0.3 dB | ±5° | SMA | 加入询价单 |
| PDM-06265-S4 | 6 GHz | 26.5 GHz | 2.0 dB | 1.7 | 16 dB | ±0.3 dB | ±3° | SMA | 加入询价单 |
|
PDM-0640-K4 |
6 GHz | 40 GHz | 2.0 dB | 2 | 15 dB | ±0.5 dB | ±8° | 2.92mm | 加入询价单 |
| PDM-0812-S4 | 8 GHz | 12 GHz | 1.0 dB | 1.25 | 18 dB | ±0.4 dB | ±4° | SMA | 加入询价单 |
| PDM-1040-K4 | 10 GHz | 40 GHz | 1.6 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-1218-S4 | 12 GHz | 18 GHz | 1.0 dB | 1.4 | 18 dB | ±0.3 dB | ±5° | SMA | 加入询价单 |
| PDM-18265-S4 | 18 GHz | 26.5 GHz | 1.0 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | SMA | 加入询价单 |
| PDM-1827-K4 | 18 GHz | 27 GHz | 1.0 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-1831-K4 | 18 GHz | 31 GHz | 1.0 dB | 1.5 | 18 dB | ±0.4 dB | ±6° | 2.92mm | 加入询价单 |
|
PDM-1840-K4 |
18 GHz | 40 GHz | 1.6 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-2440-K4 | 24 GHz | 40 GHz | 1.6 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-26540-K4 | 26.5 GHz | 40 GHz | 1.6 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-2628-K4 | 26 GHz | 28 GHz | 1.0 dB | 1.4 | 20 dB | ±0.2 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-2731-K4 | 27 GHz | 31 GHz | 1.0 dB | 1.5 | 18 dB | ±0.4 dB | ±5° | 2.92mm | 加入询价单 |
| PDM-305325-K4 | 30.5 GHz | 32.5 GHz | 1.4 dB | 1.5 | 16 dB | ±0.4 dB | ±4° | 2.92mm | 加入询价单 |
