深圳如帆的2.92mm同轴转接器有直型、直角型、4孔法兰型、穿墙型，包括2.92mm转1mm，2.92mm转1.85mm，2.92mm转2.4mm，2.92mm系列内，2.92mm转SSMP，2.92mm转SMP，2.92mm转SSMA，2.92mm转SMA，2.92mm转N等系列同轴转接器。所有2.92mm同轴转接器现货供应，每个产品出货前均会进行测试，并提供测试曲线。
筛选
Connection Type
Connection Type
Between Series
In Series
Frequency Max
Frequency Max
18 GHz
27 GHz
34 GHz
40 GHz
Body Style
Body Style
Straight
Right Angle
Bulkhead
Bulkhead Hermetically
4 Hole Flange
重置筛选
每页 20
123...4
| P/N |
Connection Type |
Frequency Max |
Connector 1 |
Connector 2 |
Body Style |
VSWR Max |
加入询价单 |
|
A4047B |
Between Series |
40 GHz |
1.0mm Male |
2.92mm Male |
Straight |
1.15 |
加入询价单 |
|
A4048B |
Between Series |
40 GHz |
1.0mm Male |
2.92mm Female |
Straight |
1.15 |
加入询价单 |
|
A4049B |
Between Series |
40 GHz |
1.0mm Female |
2.92mm Male |
Straight |
1.15 |
加入询价单 |
|
A4050B |
Between Series |
40 GHz |
1.0mm Female |
2.92mm Female |
Straight |
1.15 |
加入询价单 |
|
A4008B |
Between Series |
40 GHz |
1.85mm Male |
2.92mm Male |
Straight |
1.2 |
加入询价单 |
|
A4008B-RA |
Between Series |
40 GHz |
1.85mm Male |
2.92mm Male |
Right Angle |
1.25 |
加入询价单 |
|
A4009B |
Between Series |
40 GHz |
1.85mm Female |
2.92mm Male |
Straight |
1.2 |
加入询价单 |
|
A4009B-RA |
Between Series |
40 GHz |
1.85mm Female |
2.92mm Male |
Right Angle |
1.25 |
加入询价单 |
|
A4010B |
Between Series |
40 GHz |
1.85mm Female |
2.92mm Female |
Straight |
1.2 |
加入询价单 |
|
A4010B-RA |
Between Series |
40 GHz |
1.85mm Female |
2.92mm Female |
Right Angle |
1.25 |
加入询价单 |
|
A4011B |
Between Series |
40 GHz |
1.85mm Male |
2.92mm Female |
Straight |
1.2 |
加入询价单 |
|
A4011B-RA |
Between Series |
40 GHz |
1.85mm Male |
2.92mm Female |
Right Angle |
1.25 |
加入询价单 |
|
A4004B |
Between Series |
40 GHz |
2.4mm Female |
2.92mm Female |
Straight |
1.2 |
加入询价单 |
|
A4004B-RA |
Between Series |
40 GHz |
2.4mm Female |
2.92mm Female |
Right Angle |
1.25 |
加入询价单 |
|
A4005B |
Between Series |
40 GHz |
2.4mm Male |
2.92mm Female |
Straight |
1.2 |
加入询价单 |
|
A4005B-RA |
Between Series |
40 GHz |
2.4mm Male |
2.92mm Female |
Right Angle |
1.25 |
加入询价单 |
|
A4006B |
Between Series |
40 GHz |
2.4mm Male |
2.92mm Male |
Straight |
1.2 |
加入询价单 |
|
A4006B-RA |
Between Series |
40 GHz |
2.4mm Male |
2.92mm Male |
Right Angle |
1.25 |
加入询价单 |
|
A4007B |
Between Series |
40 GHz |
2.4mm Female |
2.92mm Male |
Straight |
1.2 |
加入询价单 |
|
A4007B-RA |
Between Series |
40 GHz |
2.4mm Female |
2.92mm Male |
Right Angle |
1.25 |
加入询价单 |
|
A4007P-F1 |
Between Series |
40 GHz |
2.4mm Female |
2.92mm Female |
4 Hole Flange |
1.2 |
加入询价单 |
|

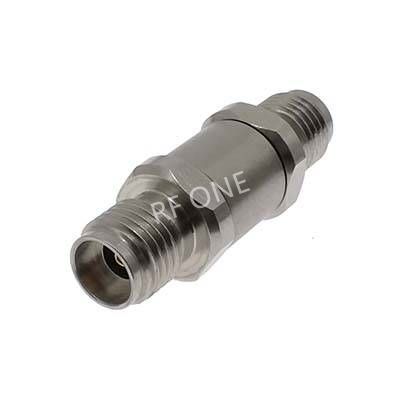

A4001B |
In Series |
40 GHz |
2.92mm Female |
2.92mm Female |
Straight |
1.2 |
加入询价单 |
|

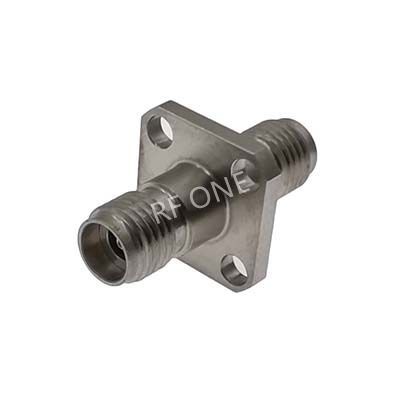

A4001B-F1 |
In Series |
40 GHz |
2.92mm Female |
2.92mm Female |
4 Hole Flange |
1.2 |
加入询价单 |
|

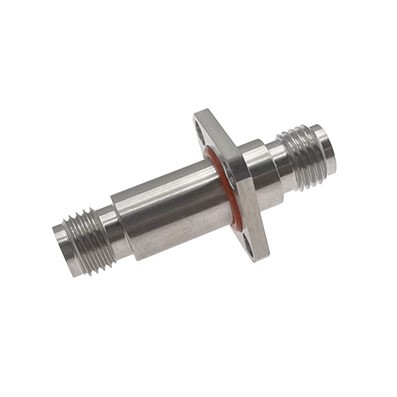

A4001B-F2 |
In Series |
40 GHz |
2.92mm Female |
2.92mm Female |
4 Hole Flange |
1.15 |
加入询价单 |
|
A4001B-Y1 |
In Series |
40 GHz |
2.92mm Female |
2.92mm Female |
Bulkhead |
1.2 |
加入询价单 |
|

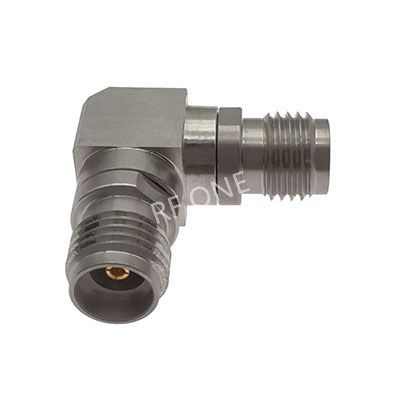

A4001B-RA |
In Series |
40 GHz |
2.92mm Female |
2.92mm Female |
Right Angle |
1.25 |
加入询价单 |
|

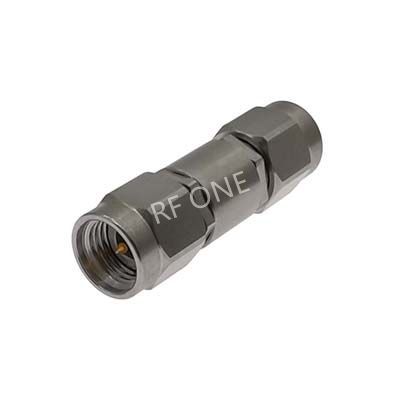

A4002B |
In Series |
40 GHz |
2.92mm Male |
2.92mm Male |
Straight |
1.2 |
加入询价单 |
|

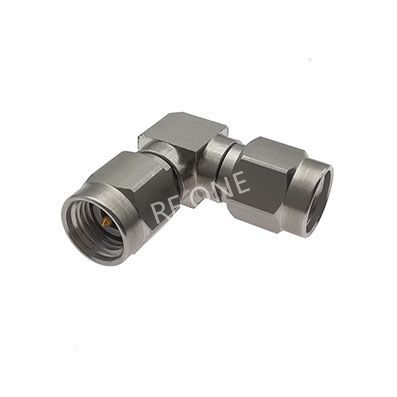

A4002B-RA |
In Series |
40 GHz |
2.92mm Male |
2.92mm Male |
Right Angle |
1.25 |
加入询价单 |
|
A4003B |
In Series |
40 GHz |
2.92mm Male |
2.92mm Female |
Straight |
1.2 |
加入询价单 |
|

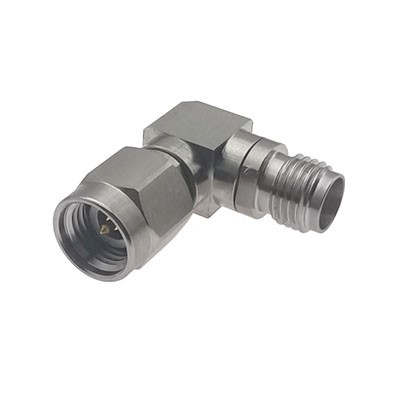

A4003B-RA |
In Series |
40 GHz |
2.92mm Male |
2.92mm Female |
Right Angle |
1.25 |
加入询价单 |
|

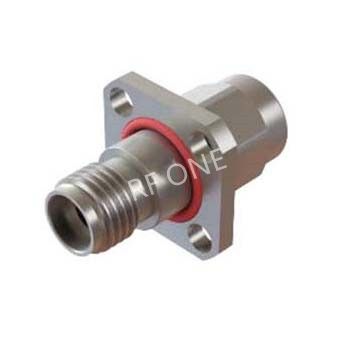

A4001P-F1 |
In Series |
40 GHz |
2.92mm Female |
2.92mm Male |
4 Hole Flange |
1.2 |
加入询价单 |
|
A4001P-Y1 |
In Series |
40 GHz |
2.92mm Female |
2.92mm Male |
Bulkhead |
1.15 |
加入询价单 |
|
A2704B |
Between Series |
34 GHz |
2.92mm Female |
3.5mm Female |
Straight |
1.2 |
加入询价单 |
|
A2705B |
Between Series |
34 GHz |
2.92mm Male |
3.5mm Male |
Straight |
1.2 |
加入询价单 |
|
A2706B |
Between Series |
34 GHz |
2.92mm Male |
3.5mm Female |
Straight |
1.2 |
加入询价单 |
|
A2707B |
Between Series |
34 GHz |
2.92mm Female |
3.5mm Male |
Straight |
1.2 |
加入询价单 |
|
A1817B |
Between Series |
18 GHz |
2.92mm Male |
N Male |
Straight |
1.15 |
加入询价单 |
|
A1818B |
Between Series |
18 GHz |
2.92mm Female |
N Male |
Straight |
1.15 |
加入询价单 |
|
A1819B |
Between Series |
18 GHz |
2.92mm Male |
N Female |
Straight |
1.15 |
加入询价单 |
|
A1820B |
Between Series |
18 GHz |
2.92mm Female |
N Female |
Straight |
1.15 |
加入询价单 |
|
A1847B |
Between Series |
18 GHz |
2.92mm Male |
SMA Male |
Straight |
1.15 |
加入询价单 |
|
A1848B |
Between Series |
18 GHz |
2.92mm Female |
SMA Male |
Straight |
1.15 |
加入询价单 |
|
A1849B |
Between Series |
18 GHz |
2.92mm Male |
SMA Female |
Straight |
1.15 |
加入询价单 |
|
A1850B |
Between Series |
18 GHz |
2.92mm Female |
SMA Female |
Straight |
1.15 |
加入询价单 |
|
A2713P |
Between Series |
27 GHz |
2.92mm Female |
SMA Female |
Straight |
1.15 |
加入询价单 |
|
A2714P |
Between Series |
27 GHz |
2.92mm Male |
SMA Female |
Straight |
1.15 |
加入询价单 |
|
A2715P |
Between Series |
27 GHz |
2.92mm Female |
SMA Male |
Straight |
1.15 |
加入询价单 |
|
A2716P |
Between Series |
27 GHz |
2.92mm Male |
SMA Male |
Straight |
1.15 |
加入询价单 |
|
A4024B |
Between Series |
40 GHz |
SSMP Male |
2.92mm Male |
Straight |
1.3 |
加入询价单 |
|
A4025B |
Between Series |
40 GHz |
SSMP Female |
2.92mm Male |
Straight |
1.3 |
加入询价单 |
|
A4026B |
Between Series |
40 GHz |
SSMP Male |
2.92mm Female |
Straight |
1.3 |
加入询价单 |
|
A4027B |
Between Series |
40 GHz |
SSMP Female |
2.92mm Female |
Straight |
1.3 |
加入询价单 |
|
A4012B |
Between Series |
40 GHz |
SMP Male |
2.92mm Male |
Straight |
1.3 |
加入询价单 |
|
A4013B |
Between Series |
40 GHz |
SMP Female |
2.92mm Male |
Straight |
1.3 |
加入询价单 |
|
A4014B |
Between Series |
40 GHz |
SMP Male |
2.92mm Female |
Straight |
1.3 |
加入询价单 |
|
A4015B |
Between Series |
40 GHz |
SMP Female |
2.92mm Female |
Straight |
1.3 |
加入询价单 |
|
A4020B |
Between Series |
40 GHz |
SSMA Male |
2.92mm Male |
Straight |
1.2 |
加入询价单 |
|
A4021B |
Between Series |
40 GHz |
SSMA Female |
2.92mm Male |
Straight |
1.2 |
加入询价单 |
|
A4022B |
Between Series |
40 GHz |
SSMA Male |
2.92mm Female |
Straight |
1.2 |
加入询价单 |
|
A4023B |
Between Series |
40 GHz |
SSMA Female |
2.92mm Female |
Straight |
1.2 |
加入询价单 |
|
AHS-KFKF-1 |
In Series |
40 GHz |
2.92mm Female |
2.92mm Female |
Bulkhead Hermetically |
1.3 |
加入询价单 |
